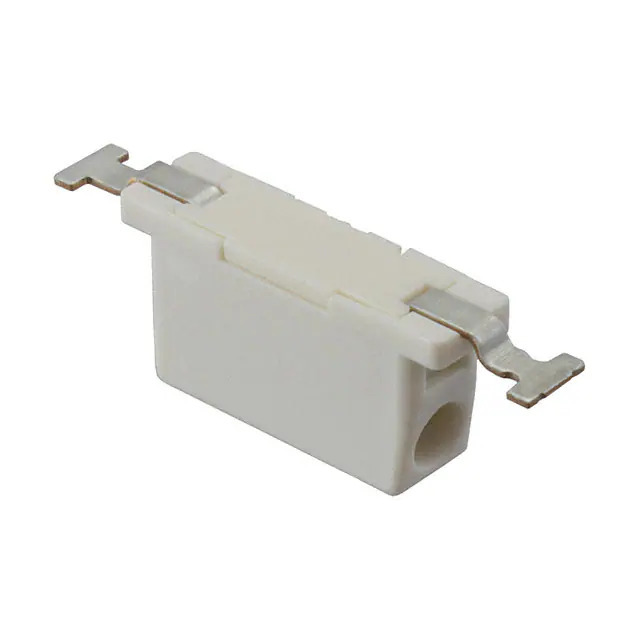

1-2834331-1 TE Connectivity
Same model may have multiple batches, images only for reference.

1-2834331-1

Part No 1-2834331-1
Manufacturer TE Connectivity
Catalog Terminal Blocks
Description 6.5PITCH W/CAP ITB_1P_WHITE / 1 Position Wire to Board Terminal Block Horizontal with Board, Bottom Entry 0.256" (6.50mm) Board Cutout, Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Wire to Board
Mfr TE Connectivity AMP Connectors
Series WireMate, Buchanan
Package Tape & Reel
Product Status Active
Number of Levels 1
Positions Per Level 1
Pitch 0.256" (6.50mm)
Mating Orientation Horizontal with Board, Bottom Entry
Voltage 320 V
Wire Gauge 18-24 AWG
Mounting Type Board Cutout, Surface Mount
Wire Termination Screwless - Leg Spring, Push-In Spring
Features Cover
Color White
Temperature Range - Operating -25°C ~ 40°C
Housing Material Thermoplastic
Contact Material - Plating Copper Alloy - Tin Plated
Clamp Material - Plating -
Screw Material - Plating -
Torque - Screw -
Screw Thread -
Base Product Number 2834331
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1363476-1-2834331-1
Ultra Librarian 3D Model Ultra Librarian 1-2834331-1 CAD Model

Description

The TE Connectivity AMP Connectors WireMate, Buchanan series terminal block is a versatile and reliable solution for wire-to-board connections.

  • Wire Gauge: 18-24 AWG
  • Voltage Rating: 320V
  • Cover: Yes
  • Operating Temperature: -25°C to 40°C
  • Housing Material: Thermoplastic
  • Contact Material: Copper Alloy
  • Contact Plating: Tin
  • Mounting Type: Board Cutout, Surface Mount
