1-2199230-5 TE Connectivity
Same model may have multiple batches, images only for reference.

1-2199230-5

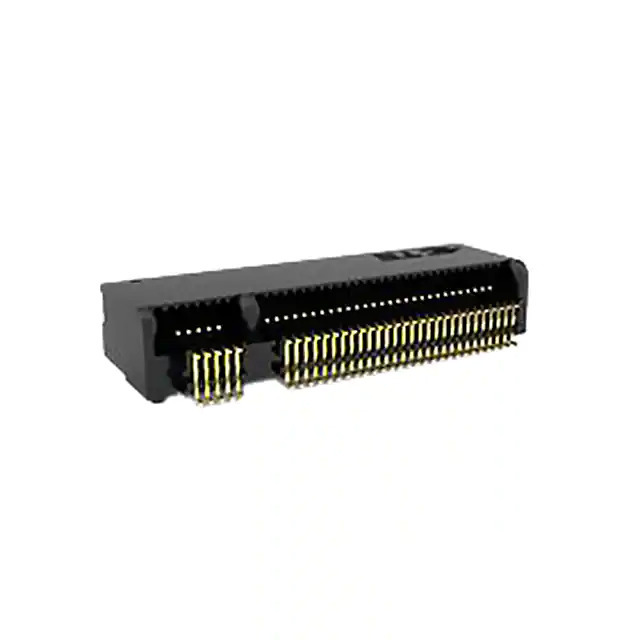

Part No 1-2199230-5
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN M.2 FMALE 67POS 0.020 GOLD / 67 Position Female Connector M.2 (NGFF) Mini Card Gold 0.020" (0.50mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Card Edge Connectors - Edgeboard Connectors
Mfr TE Connectivity AMP Connectors
Series -
Package Tape & Reel (TR)
Product Status Active
Card Type M.2 (NGFF) Mini Card
Gender Female
Number of Positions/Bay/Row -
Number of Positions 67
Card Thickness -
Number of Rows 2
Pitch 0.020" (0.50mm)
Read Out Dual
Features Board Guide
Mounting Type Surface Mount, Right Angle
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Contact Type -
Color Black
Flange Feature -
Temperature Range - Operating -40°C ~ 80°C
Material - Insulation Thermoplastic
Base Product Number 2199230
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364387-1-2199230-5
Ultra Librarian 3D Model Ultra Librarian 1-2199230-5 CAD Model

Description

The TE Connectivity AMP Connectors Edgeboard Connector is a high-quality component for your electronic projects.

  • Product: Edgeboard Connector
  • Manufacturer: TE Connectivity AMP Connectors
  • For Use With/Related Products: M.2 (NGFF) Mini Cards
  • Mounting Type: Surface Mount, Right Angle
  • Temperature Range: -40°C to 80°C
  • Number of Positions: 67
  • Number of Rows: 2
  • Termination Style: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0μin (0.38μm)
  • Status: Active
