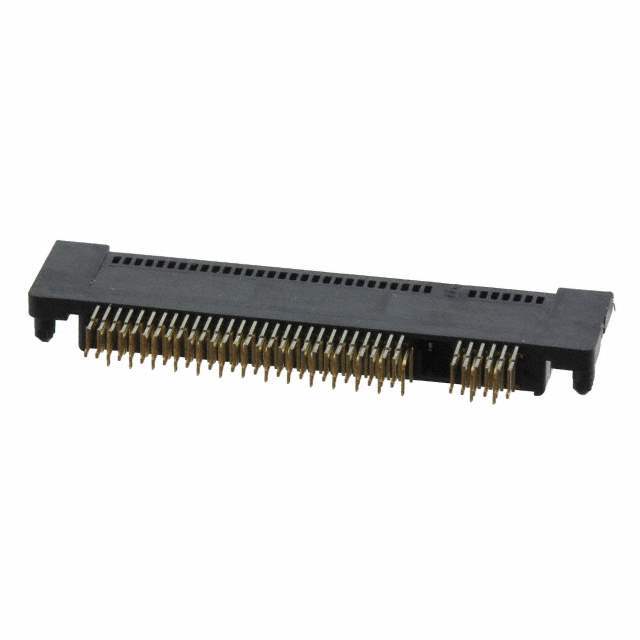

SM3ZS067B120AB2R1500 JAE Electronics
Same model may have multiple batches, images only for reference.

SM3ZS067B120AB2R1500

Part No SM3ZS067B120AB2R1500
Manufacturer JAE Electronics
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN M.2 FMALE 67POS 0.020 GOLD
Datasheet
SM3ZS067B120AB2R1500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects> Card Edge Connectors >Edgeboard Connectors
Manufacturer JAE Electronics
Packaging  Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Card Type M.2 (NGFF) Mini Card
Gender Female
Number of Positions 67
Card Thickness 0.031" (0.79mm)
Number of Rows 2
Pitch 0.020" (0.50mm)
Ultra Librarian 3D Model Ultra Librarian SM3ZS067B120AB2R1500 CAD Model

Description

The “SM3 Series” is a PCI-SIG PCI Express® M.2 Specification compatible, card edge connector into which multiple modules equipped on PCs such as WiFi ®, Bluetooth ®, SSD, and others can be inserted.
