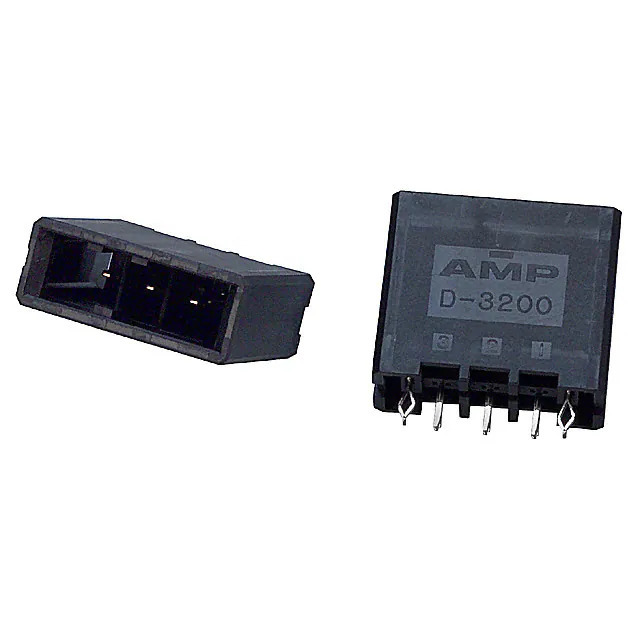

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Dynamic D-3200
Package Bulk
Product Status Active
Connector Type Header
Contact Type Tab
Pitch - Mating 0.200" (5.08mm)
Number of Positions 3
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating -
Contact Length - Post 0.150" (3.81mm)
Overall Contact Length -
Insulation Height 0.850" (21.59mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Polyester, Glass Filled
Features Board Lock
Temperature Range - Operating -55°C ~ 105°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) -
Voltage Rating 600V
Mated Stacking Heights 31.00mm ~ 32.50mm
Contact Finish Thickness - Post -
Applications General Purpose, Industrial
Base Product Number 178136
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362559-1-178136-2
Ultra Librarian 3D Model Ultra Librarian 1-178136-2 CAD Model

Description

The TE Connectivity AMP Connectors Dynamic D-3200 series header is a reliable and versatile connector suitable for various applications.

  • Temperature Range: -55°C to 105°C
  • Board Lock: Yes
  • Mounting Type: Through Hole
  • Pitch: 0.200" (5.08mm)
  • Number of Positions: 3
  • Number of Rows: 1
  • Contact Finish: Gold
  • Insulation Material: Thermoplastic, Polyester, Glass Filled
  • Shrouding: 4 Walls
  • Voltage Rating: 600V
  • Flammability Rating: UL94 V-0
  • Application: General Purpose, Industrial
