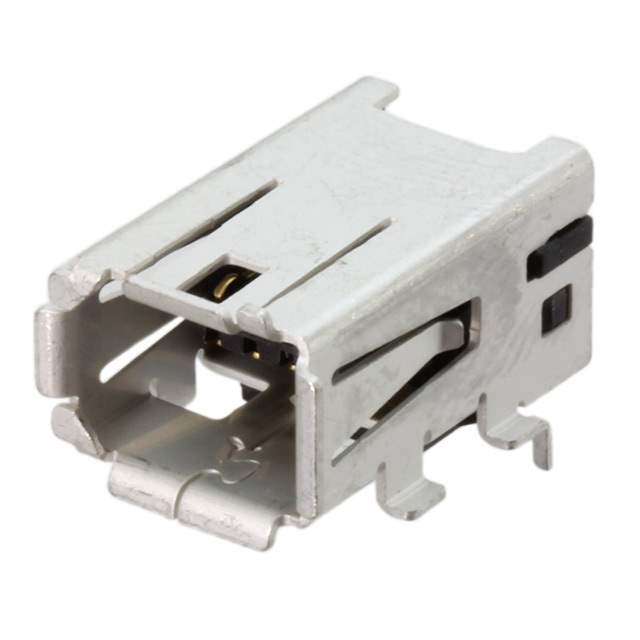

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Pluggable Connectors
Mfr TE Connectivity AMP Connectors
Package Tape & Reel (TR),Cut Tape (CT)
Connector Style Header
Connector Type Industrial Mini, Type I
Number of Positions 8
Mounting Type Surface Mount, Right Angle
Termination Solder
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 19.7µin (0.50µm)
Base Product Number 2069552
MSL Level 5 (48 Hours)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names A119636CT,-2069552-1-SI,-2069552-1-CSI,A119636-ND,A119636,A119636TR
Standard Package 300
Win Source Part Number 1005020-2069552-1
Ultra Librarian 3D Model Ultra Librarian 2069552-1 CAD Model

Description

This industrial mini Type I connector header from TE Connectivity AMP Connectors is a pluggable connector designed for surface mount, right angle mounting.

  • Positions: 8
  • Features: board guide
  • Contact Finish: gold
  • Contact Finish Thickness: 19.7μin (0.50μm)
  • Connector Style: header
  • Packaging: tape & reel (TR) or cut tape (CT)
  • Standard Package: 300 units
  • MSL Level: 5 (48 hours)
  • HTSUS Code: 8536.69.4040
  • Other Names: A119636CT, -2069552-1-SI, -2069552-1-CSI, A119636, A119636TR, Base Product Number 2069552
