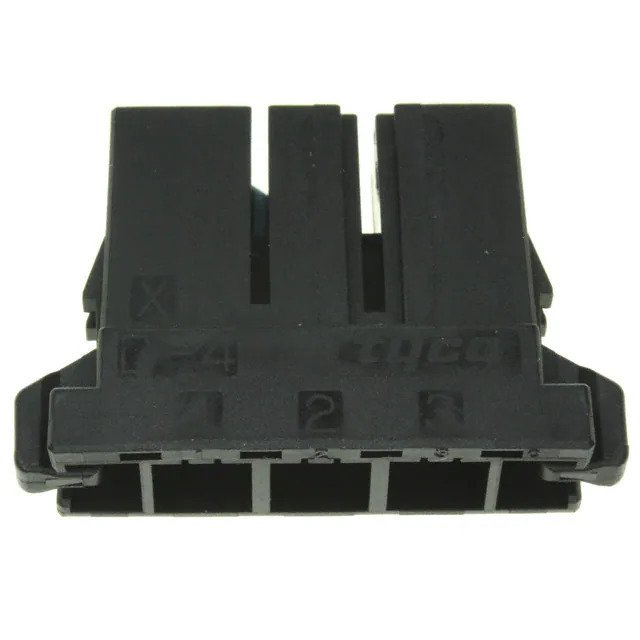

1-1747276-3 TE Connectivity
Same model may have multiple batches, images only for reference.

1-1747276-3

Part No 1-1747276-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT HSG 3POS KEY-X / 3 Rectangular Connectors - Housings Receptacle Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr TE Connectivity AMP Connectors
Series Dynamic D-4200
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 3
Number of Rows 1
Row Spacing -
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Black
Features -
Temperature Range - Operating -55°C ~ 105°C
Note Contacts Not Included
Base Product Number 1747276
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1365871-1-1747276-3
Ultra Librarian 3D Model Ultra Librarian 1-1747276-3 CAD Model

Description

The Dynamic D-4200 series is a free hanging (in-line) rectangular connector housing from TE Connectivity AMP Connectors.

  • Series: Dynamic D-4200
  • Type: Housing
  • Number of Positions: 3
  • Number of Rows: 1
  • Fastening Type: Latch Lock
  • Temperature Range: -55°C ~ 105°C
  • MSL: Level 1 (Unlimited)
  • Status: Active
  • Packaging: Bulk
  • Base Product Number: 1747276
  • HTSUS: 8538.90.6000
  • REACH Status: REACH unaffected
  • ECCN: EAR99
  • Contact Termination: Crimp
  • Connector Type: Receptacle, Female Socket
  • Color: Black
