Same model may have multiple batches, images only for reference.

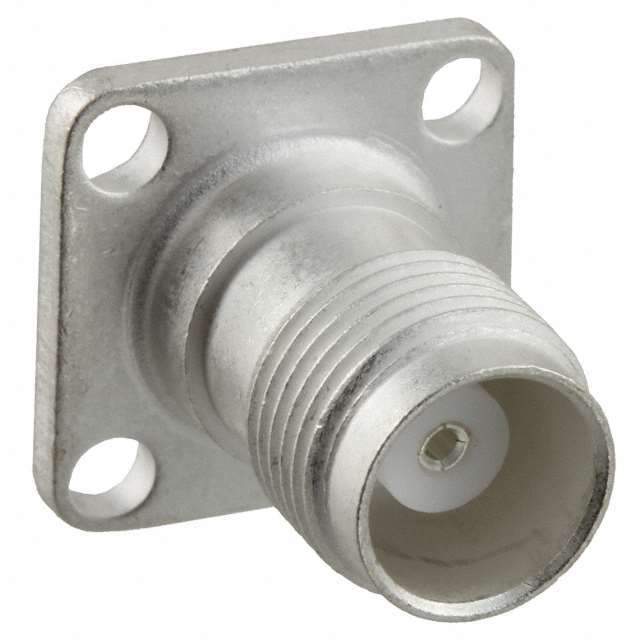

1-1337472-0 Real Image
Same model may have multiple batches, images only for reference.

1-1337472-0

Part No 1-1337472-0
Manufacturer TE Connectivity
Catalog Coaxial Connectors (RF)
Description CONN TNC JACK STR 50 OHM SOLDER / TNC Connector Jack, Female Socket 50Ohm Panel Mount Solder Cup
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr TE Connectivity AMP Connectors
Series Greenpar
Package Bulk
Product Status Obsolete
Connector Style TNC
Connector Type Jack, Female Socket
Contact Termination Solder Cup
Shield Termination Solder
Impedance 50Ohm
Mounting Type Panel Mount
Mounting Feature Flange
Fastening Type Threaded
Frequency - Max 11 GHz
Number of Ports 1
Housing Color Silver
Center Contact Material Brass
Body Material Brass
Body Finish Silver
Center Contact Plating Silver
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 500 V
Mating Cycles 500
Insertion Loss 0.2dB
Base Product Number 1337472
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Other Names -1-1337472-0-SI
Standard Package 50
Win Source Part Number 1005033-1-1337472-0
Ultra Librarian 3D Model Ultra Librarian 1-1337472-0 CAD Model

Description

The 1337472-0 electronic component is a connector manufactured by TE Connectivity AMP Connectors.

  • Manufacturer: TE Connectivity AMP Connectors
  • Category: Coaxial Connectors (RF)
  • Series: Greenpar
  • Design: Jack, Female Socket
  • Fastening Type: Threaded
  • Package: Bulk
  • Contact Termination: Solder Cup
  • Connector Style: TNC
  • Voltage Rating: 500 V
  • Frequency - Max: 11 GHz
  • Housing Color: Silver
  • Number of Ports: 1
  • Standard Package: 50
  • Impedance: 50Ohm
  • Mounting Feature: Flange
  • Body Material: Brass
  • Insertion Loss: 0.2dB
  • Shield Termination: Solder
  • Cable Group: Not Specified
  • Body Finish: Silver
  • Center Contact Material: Brass
  • Center Contact Plating: Silver
  • Dielectric Material: Polytetrafluoroethylene (PTFE)
  • Mating Cycles: 500
  • Mounting Type: Panel Mount
  • Temperature Range - Operating: -65°C ~ 165°C
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH Affected
  • ECCN: EAR99
  • HTSUS: 8536.69.4010
  • Product Status: Obsolete
