Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package Module
Current - Output 1 6.3 A
Depth 86 mm
Features OCP, OTP, OVP
Height 12.7 mm
Isolation Isolated
Isolation Voltage 3 kV
Length 97.79 mm
Max Input Voltage 185 V
Maximum Operating Temperature 85 °C
Max Output Current 6.3 A
Max Power Dissipation 150 W
Min Input Voltage 82 V
Min Operating Temperature -20 °C
Mount Through Hole
Number of Outputs 1
Number of Pins 10
Output Current 12.5 A
Output Power 150 W
Output Voltage 24 V
Packaging Bulk
RoHS Compliant
Voltage - Output 1 24 V
Width 40.894 mm
Win Source Part Number 1084681-PH150S11024
Categories Board Mount Modules
Manufacturer TDK-Lambda Americas Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian PH150S11024 CAD Model

Description

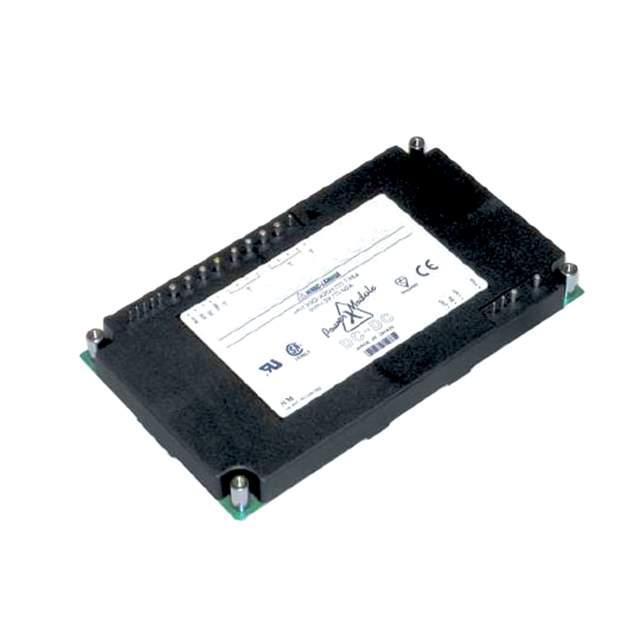

The TDK-Lambda Americas Inc. PH150S11024 is a board mount module with OCP, OTP, and OVP features.

  • Isolated Voltage: 3 kV
  • Number of Outputs: 1
  • Output Voltage: 24V
  • Output Current: 12.5A
  • Output Power: 150W
  • Maximum Input Voltage: 185V
  • Minimum Input Voltage: 82V
  • Mounting: Through-hole
  • Length: 97.79 mm
  • Width: 40.894 mm
  • Height: 12.7 mm
  • Temperature Range: -20 °C to 85 °C
  • RoHS Compliance: RoHS compliant
