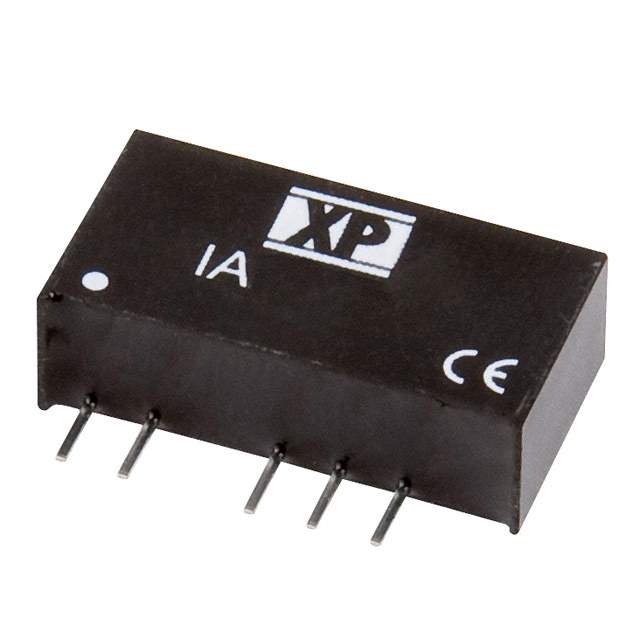

IA2415S Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr XP Power
Series IA (1W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 33mA
Power (Watts) 1 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 78%
Mounting Type Through Hole
Package / Case 5-SIP Module
Dimension 0.76" L x 0.24" W x 0.40" H (19.3mm x 6.1mm x 10.2mm)
Standard Number 62368-1
Base Product Number IA2415
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1470-1374-5
Standard Package 20
Win Source Part Number 1231040-IA2415S
Ultra Librarian 3D Model Ultra Librarian IA2415S CAD Model

Description

The XP Power IA2415S is an isolated module electronic component used in power supplies.

  • Power Output: 1W
  • Efficiency: 78%
  • Win Source Part Number: 1231040-IA2415S
  • Application: ITE (Commercial)
  • Mounting Type: Through Hole
  • Package/Case: 5-SIP Module
  • Compliance: ECCN, MSL Level 1
