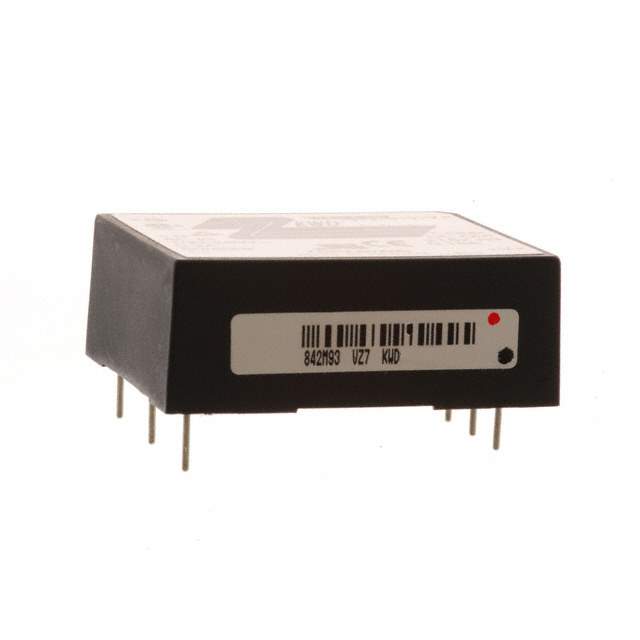

KWD10-1212 Real Image
Same model may have multiple batches, images only for reference.

KWD10-1212

Part No KWD10-1212
Manufacturer TDK-Lambda Americas Inc.
Catalog Board Mount AC DC Converters
Description Single output 5W ~ 15W AC-DC on-board type power supply | PWR SUP +/-12V 10W +/-0.45A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer TDK-Lambda Americas Inc.
Type Enclosed
Number of Outputs 2
Parts Input Voltage (V) 85 V ~ 265 VAC
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Maximum) 450mA, 450mA
Power (W) 10W
Applications ITE (Commercial)
Features OCP, OVP
Temperature Range - Operating -10°C ~ 70°C (With Derating)
Efficiency 73%
Mounting Style Through Hole
Manufacturer Package 6-DIP Module
Parts Dimension 2.52" L x 1.77" W x 0.81" H (64.0mm x 45.0mm x 20.5mm)
Line Regulation 0.4%
Load Regulation 0.8%
Approvals CE, CSA, TUV, UL
Weight 0.22 lb (99.79 g)
Manufacturer Pack Quantity 1
MSL Level Not Applicable
Win Source Part Number 1194103-KWD10-1212
Manufacturer Homepage www.global.tdk.com/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian KWD10-1212 CAD Model

Description

The TDK-Lambda Americas Inc. KWD10-1212 enclosed power supply is a 6-DIP module package with through-hole mounting style.

  • Outputs: two
  • Voltage Output 1: 12V
  • Voltage Output 2: -12V
  • Efficiency: 73%
  • Line Regulation: 0.4%
  • Load Regulation: 0.8%
  • Weight: 0.22 lb (99.79 g)
  • Operating Temperature: -10°C to 70°C (With Derating)
  • Input Voltage: 85 V ~ 265 VAC
  • Power: 10W
  • Approvals: CE, CSA, TUV, and UL
