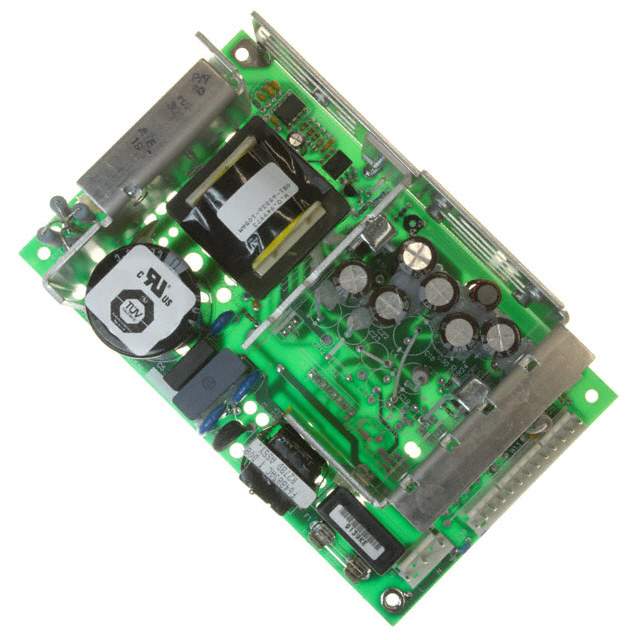

MAP140-1024 Real Image
Same model may have multiple batches, images only for reference.

MAP140-1024

Part No MAP140-1024
Manufacturer Bel Power Solutions
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 24V 80W / Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
Datasheet
MAP140-1024 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr Bel Power Solutions
Series MAP140 (140W)
Package Bulk
Type Open Frame
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC
Voltage - Output 1 24V
Current - Output 1 4.6 A
Power (Watts) 80W (140W Forced Air)
Applications ITE (Commercial)
Voltage - Isolation 2.6 kV
Efficiency 80%
Temperature Range - Operating 0°C ~ 70°C (With Derating)
Features Adjustable Output, Remote Sense, Universal Input
Mounting Type Chassis Mount
Dimension 7.00" L x 4.30" W x 1.80" H (177.8mm x 109.2mm x 45.7mm)
Approval Agency CB, cCSAus, CE
Minimum Load Required No
Base Product Number MAP140
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.6018
Other Names 179-2010,2266-MAP140-1024,MAP1401024
Standard Package 40
Win Source Part Number 1097473-MAP140-1024
Ultra Librarian 3D Model Ultra Librarian MAP140-1024 CAD Model

Description

The MAP140-1024 is an open frame AC/DC converter from Bel Power Solutions.

  • Power Supply: 140W
  • Features: Adjustable output, remote sense, and universal input
  • Package: Bulk
  • Standard Package: 40 units
  • Applications: ITE (commercial)
  • Voltage Input: 85-264VAC
  • Voltage Isolation: 2.6kV
  • Output: Single output
  • Voltage Output: 24V
  • Output Current: 4.6A
  • Efficiency: 80%
  • Minimum Load Requirement: No
  • Mounting: Chassis mounted
  • Operating Temperature Range: 0°C to 70°C with derating
  • Dimension: 7.00” L x 4.30” W x 1.80” H (177.8mm x 109.2mm x 45.7mm)
  • Approvals: CB, cCSAus, and CE
