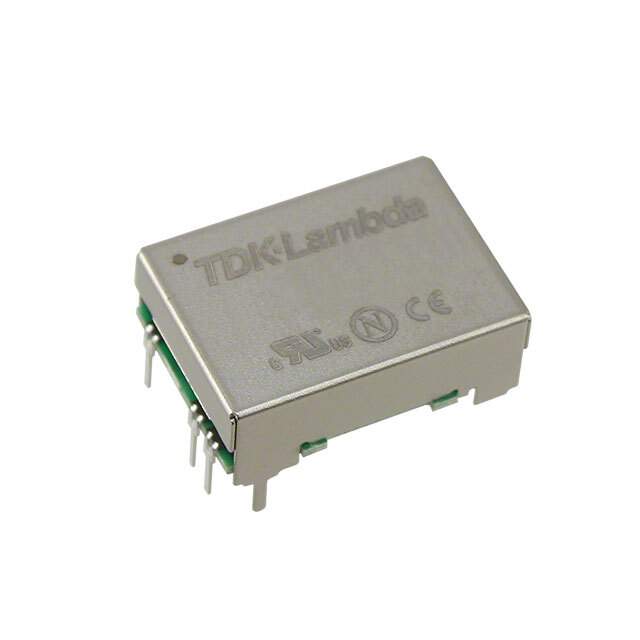

CC3-0503SF-E Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr TDK-Lambda Americas Inc
Series CC-E (3W)
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 3.3V
Current - Output (Max) 800mA
Power (Watts) 3 W
Voltage - Isolation 500 V
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 7-DIP Module
Dimension 0.90" L x 0.65" W x 0.34" H (22.9mm x 16.6mm x 8.5mm)
Control Features Enable, Active Low
Base Product Number CC3-0503
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Other Names CC30503SFE,445-2462
Standard Package 10
Win Source Part Number 1051417-CC3-0503SF-E
Ultra Librarian 3D Model Ultra Librarian CC3-0503SF-E CAD Model

Description

This electronic component is a power supply board mount DC DC converter with a Win Source Part Number of 1051417-CC3-0503SF-E.

  • Series: CC-E (3W)
  • Type: isolated module type
  • Package: tray package
  • Application: ITE (Commercial)
  • Standard Package: 10 units
  • Power Output: 3 watts
  • Control Feature: enable, active-low
  • Voltage Isolation: 500 volts
  • Maximum Output Current: 800mA
  • Voltage Input: 4.5V to 9V
  • Voltage Output: 3.3V
  • Mounting Type: through-hole
  • Package/Case: 7-DIP module
  • Operating Temperature Range: -40°C to 85°C
  • Alternative parts: REC3-0505SR/H1, CC3-0505SF-E, CC1R5-0503SF-E, REC3-0512SR/H1, and NMV0509DACCC-3-0503SF-E
  • ECCN: EAR99
