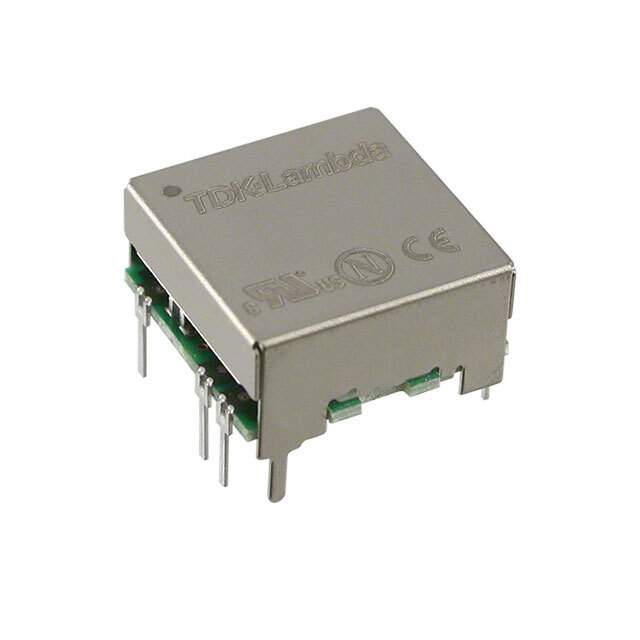

CC1R5-0512DF-E Real Image
Same model may have multiple batches, images only for reference.

CC1R5-0512DF-E

Part No CC1R5-0512DF-E
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CNVRTR +/-12V TO +/-15V 1W / Isolated Module DC DC Converter 2 Output 12 ~ 15V -12 ~ -15V 60mA, 60mA 4.5V - 9V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr TDK-Lambda Americas Inc
Series CC-E (1.5W)
Package Tray
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 12 ~ 15V
Voltage - Output 2 -12 ~ -15V
Current - Output (Max) 60mA, 60mA
Power (Watts) 1 W
Voltage - Isolation 500 V
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 7-DIP Module
Dimension 0.65" L x 0.65" W x 0.34" H (16.5mm x 16.6mm x 8.5mm)
Control Features Enable, Active Low
Base Product Number CC1R5
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Other Names 445-2447,CC1R50512DFE
Standard Package 10
Win Source Part Number 1051407-CC1R5-0512DF-E
Ultra Librarian 3D Model Ultra Librarian CC1R5-0512DF-E CAD Model

Description

The TDK-Lambda Americas Inc CC1R5-0512DF-E is an isolated module type DC-DC converter that belongs to the Power Supplies - Board Mount category.

  • Power: 1W
  • Voltage Isolation: 500V
  • Outputs: two outputs
  • Maximum Output Current: 60mA each
  • Dimensions: 0.65" L x 0.65" W x 0.34" H (16.5mm x 16.6mm x 8.5mm)
  • Supply and Demand Status: experiencing a shortage
