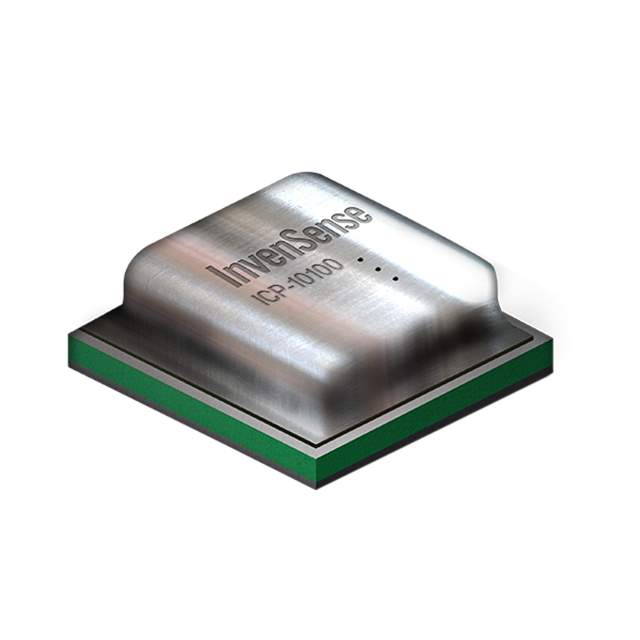

ICP-10101 Real Image
Same model may have multiple batches, images only for reference.

ICP-10101

Part No ICP-10101
Manufacturer TDK InvenSense
Catalog Pressure Sensors, Transducers
Description HIGH ACCURACY, LOW POWER, BAROME / Pressure Sensor 4.35PSI ~ 15.95PSI (30kPa ~ 110kPa) Absolute 10-WFLGA
Datasheet
ICP-10101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Manufacturer TDK InvenSense
Packaging Reel - TR
Applications Board Mount
Pressure Type Absolute
Operating Pressure 4.35PSI ~ 15.95PSI (30kPa ~ 110kPa)
Output Type I2C
Voltage - Supply 1.8V
Port Style No Port
Termination Style SMD (SMT) Tab
Temperature Range - Operating -40°C ~ 85°C
Case / Package 10-WFLGA
Supplier Device Package 10-LGA (2x2)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Other Part Number 1428-1143-1,1428-1143-2,1428-1143-6
Standard Package 10,000
Win Source Part Number 1336563-ICP-10101
Ultra Librarian 3D Model Ultra Librarian ICP-10101 CAD Model

Description

The TDK InvenSense ICP-10101 is a pressure sensor that operates at an absolute pressure of 4.35PSI to 15.95PSI (30kPa to 110kPa).

  • Output Type: I2C
  • Termination Style: SMD (SMT) Tab
  • Mounting Type: Board Mount
  • Standard Package: 10,000
  • Voltage Supply: 1.8V
  • Operating Temperature: -40°C to 85°C
  • Package: 10-LGA (2x2)
  • Port Style: None
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS: 9026.20.4000
  • RoHS3 Compliant: true
