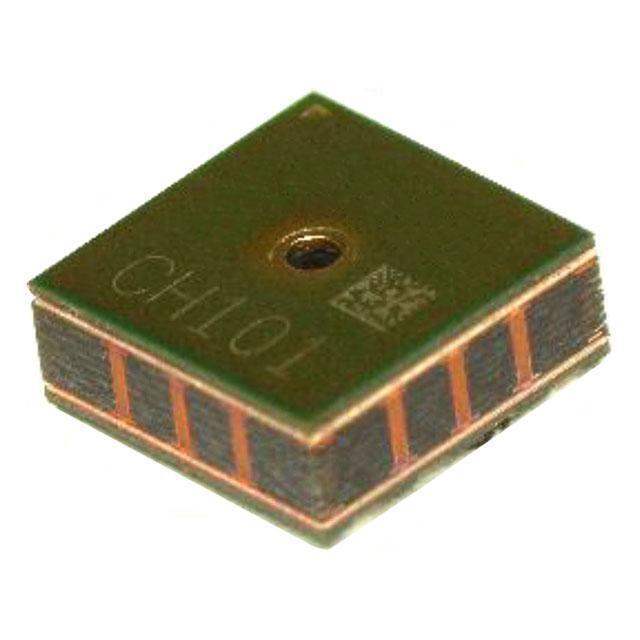

CH101-00ABR TDK InvenSense
Same model may have multiple batches, images only for reference.

CH101-00ABR

Part No CH101-00ABR
Manufacturer TDK InvenSense
Catalog Ultrasonic Receivers, Transmitters
Description ULTRA-LOW POWER INTEGRATED ULTRA
Datasheet
CH101-00ABR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201242-CH101-00ABR
Manufacturer TDK InvenSense
Category Sensors, Transducers -Ultrasonic Receivers, Transmitters
Series Chirp Micro
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Type Transmitter, Receiver
Frequency 175kHz
Voltage - Rated 1.62 V ~ 1.98 V
Beam Angle 180°
Operating Temperature -40°C ~ 85°C
Ultra Librarian 3D Model Ultra Librarian CH101-00ABR CAD Model

Description

The 1201242 is an ultrasonic receiver and transmitter manufactured by TDK InvenSense.

  • Series: Chirp Micro
  • Application: Sensor/Transducer
  • Function: Transmitter/Receiver
  • Package: Tape & Reel (TR) Cut Tape (CT)
  • Rated Voltage: 1.62 V to 1.98 V
  • Frequency: 175kHz
  • Temperature: -40°C to 85°C
  • Beam Angle: 180°
  • Product Status: Active
