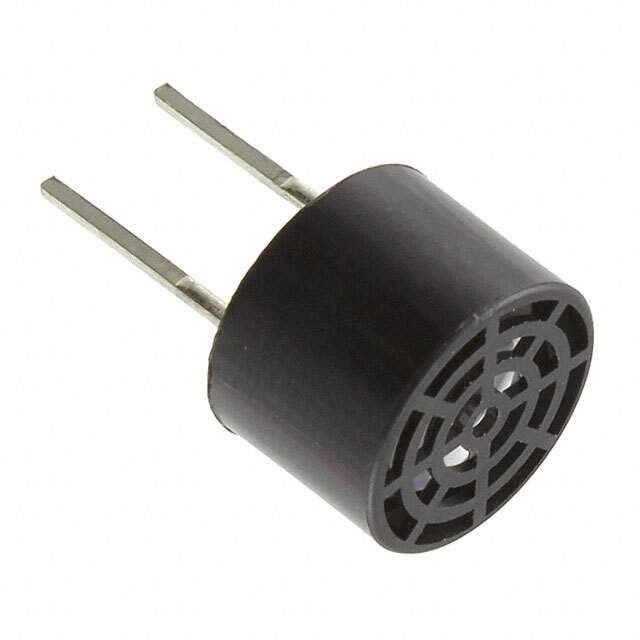

The MA40S4R is a miniature surface mount ultrasonic sensor manufactured by Murata Electronics North America. It is designed for a wide range of applications that require distance measurement, object detection, or proximity sensing. This sensor operates by transmitting and receiving ultrasonic waves, providing a non-contact sensing solution.

Applications:

• Robotics: Used for obstacle avoidance and navigation in robots.
• Proximity detection: Employed in parking sensors, security systems, and automated doors.
• Liquid level sensing: Utilized in liquid level monitoring systems.
• Object counting: Found in automated production lines and inventory management systems.
• Distance measurement: Incorporated into rangefinders and surveying equipment.

Features:

• Compact size: Small surface mount package for space-constrained applications.
• Operating frequency: 40 kHz operating frequency for reliable performance.
• Wide detection range: Detects objects within a specified range, typically up to several meters.
• Low power consumption: Minimizes power consumption for battery-powered devices.
• RoHS compliant: Environmentally friendly, free from hazardous substances.
• Reflow solderable: Designed for automated assembly processes.

Benefits:

• Non-contact sensing: Provides reliable sensing without physical contact.
• Accurate measurement: Offers accurate distance measurement and object detection.
• Easy integration: Simple interface facilitates integration into various systems.
• Low cost: Provides a cost-effective sensing solution.
• Versatile application: Suitable for a wide range of applications.

Additional Details:

The MA40S4R is typically used in conjunction with a driver circuit to generate the ultrasonic signal and a receiver circuit to detect the reflected signal. The distance to an object is determined by measuring the time it takes for the ultrasonic wave to travel to the object and back. The sensor's performance is affected by factors such as temperature, humidity, and the surface properties of the target object. It is important to consult the datasheet for detailed specifications, including sensitivity, directivity, and operating conditions. Murata Electronics provides comprehensive documentation and support for this ultrasonic sensor.
