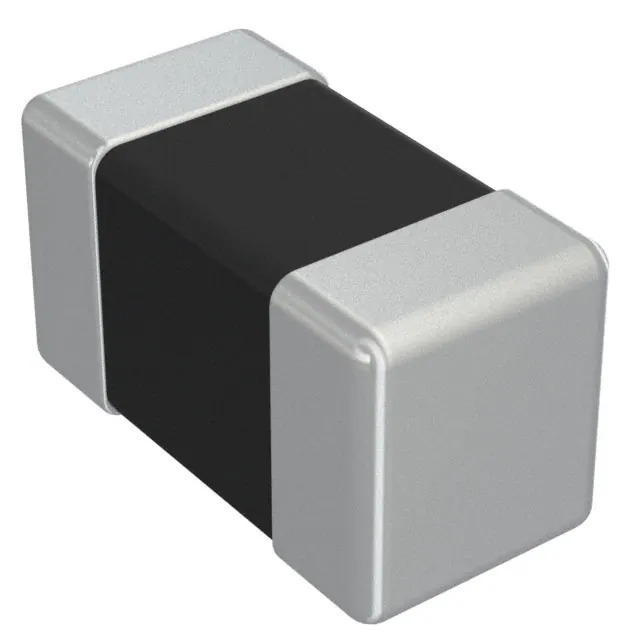

Same model may have multiple batches, images only for reference.

MPZ1005S900HT000

Name: MPZ1005S900HT000
Brand: TDK Corporation
SKU: 1368928
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MPZ1005S900HT000
Manufacturer	TDK Corporation
Catalog	Ferrite Beads and Chips
Description	FERRITE BEAD 90 OHM 0402 1LN
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters - Ferrite Beads and Chips
Mfr	TDK Corporation
Series	MPZ-H
Package	Tape & Reel
Product Status	Active
Filter Type	Power Line
Number of Lines	1
Impedance @ Frequency	90 Ohms @ 100 MHz
Current Rating (Max)	2.3A
DC Resistance (DCR) (Max)	38mOhm
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 125°C
Package / Case	0402 (1005 Metric)
Mounting Type	Surface Mount
Height (Max)	0.022" (0.55mm)
Size / Dimension	0.039" L x 0.020" W (1.00mm x 0.50mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Win Source Part Number	1368928-MPZ1005S900HT000
Ultra Librarian 3D Model	Ultra Librarian MPZ1005S900HT000 CAD Model

Alternative Products

Description

The MPZ-H series ferrite beads and chips from TDK Corporation offer excellent noise suppression and filtering capabilities.

Size / Dimension: 0402 (1005 Metric)
Operating Temperature: -55°C ~ 125°C
Mounting Type: Surface Mount
Impedance @ Frequency: 90 Ohms @ 100 MHz
Current Max: 2.3A
DC Resistance (DCR) (Max): 38mOhm
AEC-Q200: Yes
