ADL5511ACPZ-R7: RF Detector with RMS and Envelope Output

The ADL5511ACPZ-R7 is a state-of-the-art RF (Radio Frequency) detector from Analog Devices Inc., designed to provide precise and reliable measurement of RF signals. This high-performance component is ideal for a wide range of applications, including wireless infrastructure, RF instrumentation, and communication systems.

Key Features

• Frequency Range: The ADL5511 operates over a broad frequency range from 1 MHz to 10 GHz, making it versatile for use in various RF applications.
• Accurate RMS Measurement: It offers true RMS measurement, ensuring accurate detection of both simple and complex waveforms, including QAM and OFDM signals.
• Dual Output Functionality: The device features both an envelope output and a square-law (RMS) voltage output, providing flexibility in signal analysis and processing.
• Temperature Stability: The ADL5511 maintains consistent performance across a temperature range of -40°C to +85°C, ensuring reliability in diverse operating conditions.
• Integrated Envelope Detector: The envelope output can be used for AM demodulation or for power amplifier linearization control schemes.
• Power Detection Range: It offers a dynamic range of 47 dB for the RMS output and 40 dB for the envelope output, accommodating a wide range of signal levels.
• Single Supply Operation: The device operates from a single 5 V supply, simplifying power supply design.

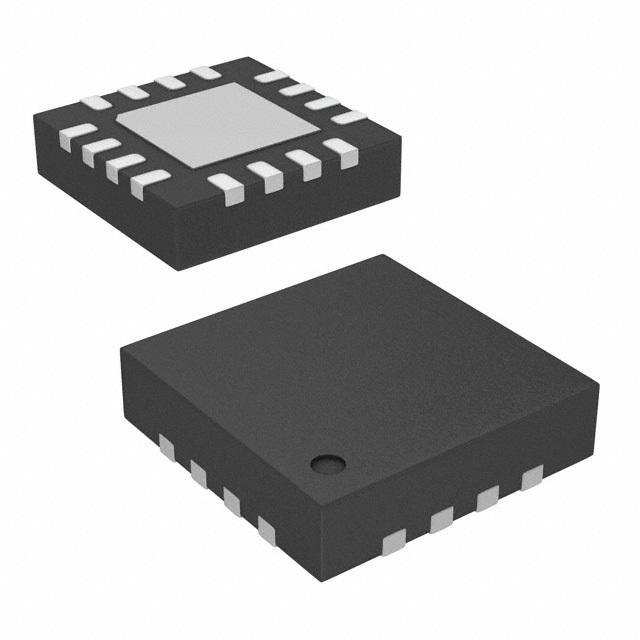

• Compact Package: Housed in a compact, 16-lead LFCSP (Lead Frame Chip Scale Package) that measures 4x4 mm, the ADL5511ACPZ-R7 is space-efficient for PCB designs.

Applications

• Wireless Infrastructure (GSM, CDMA, WCDMA, LTE)
• Power Amplifier Linearization/Envelope Tracking
• Transmitter Leakage Detection
• RF/IF Power Measurement
• Logarithmic Power Measurement

The ADL5511ACPZ-R7 from Analog Devices Inc. is a robust RF detector that combines accuracy, reliability, and versatility. It is an excellent choice for engineers and designers looking to integrate precise RF signal measurement into their systems. The dual-output capability and wide frequency range make it a highly adaptable component suitable for a variety of advanced RF applications.
