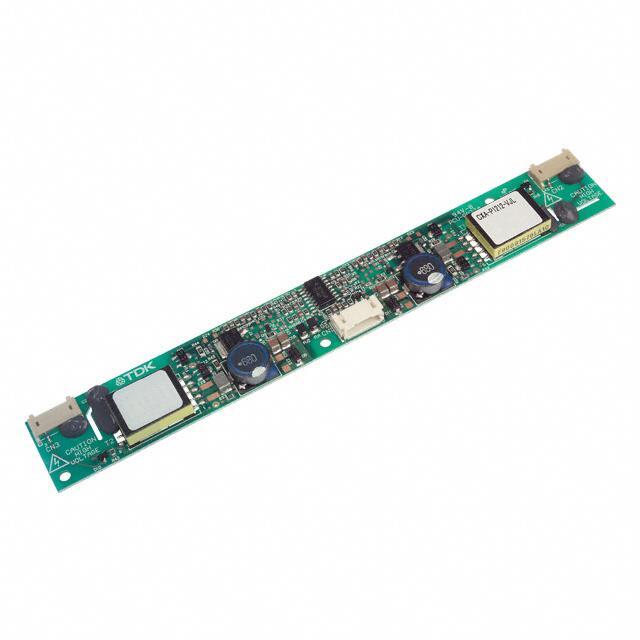

CXA-P1212-VJL TDK Corporation
Same model may have multiple batches, images only for reference.

CXA-P1212-VJL

Part No CXA-P1212-VJL
Manufacturer TDK Corporation
Catalog Inverters
Description INVERTER 12V-INPUT 1500V-OUTPUT / CCFL Inverter Dual Lamp 58KHz 11-Pin
Datasheet
CXA-P1212-VJL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer TDK Corporation
Series CXA
Part Status Obsolete(EOL)
Voltage - Input 12V
Output 1500V
Type CCFL and UV Lamps
Dimension 7.10" L x 0.93" W x 0.31" H (180.3mm x 23.5mm x 8mm)
Mounting Chassis Mount
Win Source Part Number 771950-CXA-P1212-VJL
Popularity Medium
Supply and Demand Status Limited
Family Name CXA-P1212-VJL
Introduction Date June 28, 1999
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian CXA-P1212-VJL CAD Model

Description

The CXA-P1212-VJL is a CCFL and UV lamp manufactured by TDK Corporation.

  • Series: CXA
  • Mounting: Chassis
  • Input Voltage: 12 V
  • Output Voltage: 1500 V
  • Status: Obsolete (EOL)
