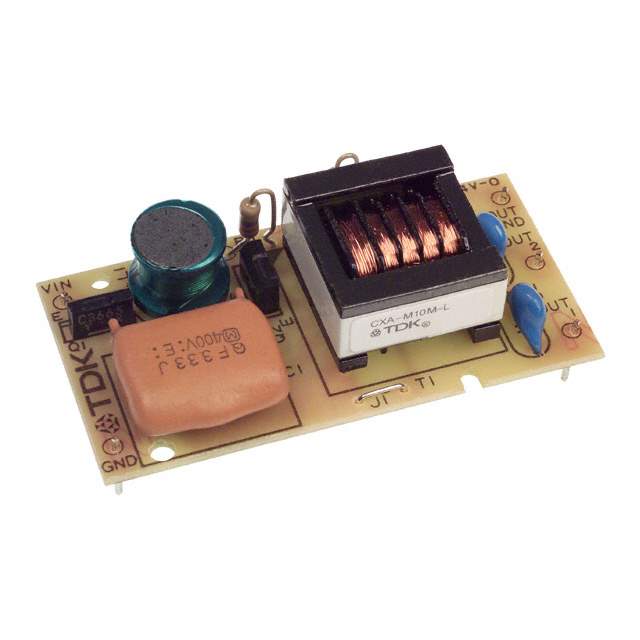

CXA-M10M-L Real Image
Same model may have multiple batches, images only for reference.

CXA-M10M-L

Part No CXA-M10M-L
Manufacturer TDK Corporation
Catalog Inverters
Description On-board type, Non-dimming, 6W, For 1 and 2 bulbs
Datasheet
CXA-M10M-L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer TDK Corporation
Series CXA
Part Status Obsolete(EOL)
Voltage - Input 24V
Output 1200V
Type CCFL and UV Lamps
Size 2.20" L x 1.14" W x 0.57" H (56mm x 29mm x 14.5mm)
Mounting Style Through Hole
Win Source Part Number 1163817-CXA-M10M-L
Manufacturer Homepage www.tdk.com
Popularity Medium
Supply and Demand Status Limited
Family Name CXA-M10M-L
Introduction Date March 06, 2008
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian CXA-M10M-L CAD Model

Description

The TDK CXA-M10M-L series is a type of CCFL and UV lamp that has an input voltage of 24V and an output of 1200V.

  • Input Voltage: 24V
  • Output Voltage: 1200V
  • Mounting Style: Through Hole
  • Size: 2.20" L x 1.14" W x 0.57" H (56mm x 29mm x 14.5mm)
  • Status: Obsolete
  • Supply and Demand: Limited
  • Introduction Date: March 06, 2008
  • Popularity: Medium
  • Application: Optoelectronics
