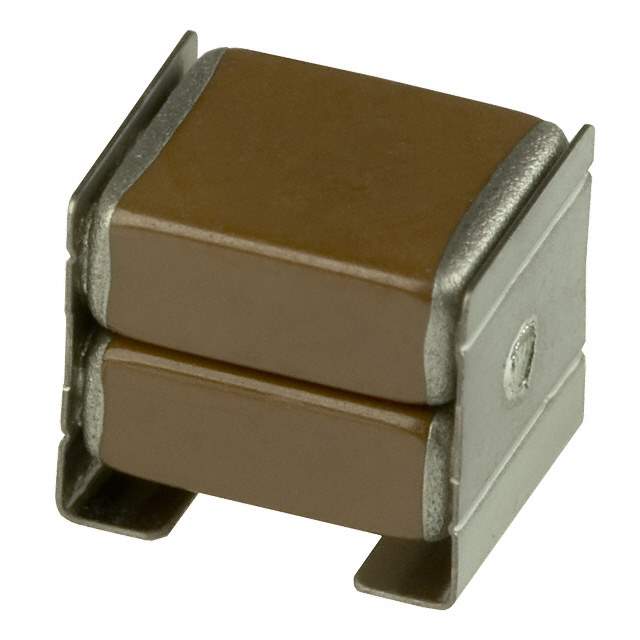

The CKG45NX7R2E474MT009W is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. MLCCs are widely used in electronic circuits for various purposes, including bypassing, decoupling, filtering, and energy storage, owing to their reliability and compact size. This particular capacitor features specific characteristics tailored for demanding applications.

Applications

• Automotive Electronics: Used in various automotive control systems where reliability and temperature stability are critical.
• Industrial Equipment: Suitable for industrial control systems that operate in harsh environments.
• Medical Devices: Employed in medical equipment requiring high reliability and stable performance.
• Power Supplies: Provides decoupling and filtering in power supply circuits.
• High-Reliability Applications: Suited for applications where failure is not an option.

Features

• Capacitance: 0.47µF (Microfarads).
• Voltage Rating: 250V DC.
• Temperature Coefficient: X7R. X7R indicates a temperature coefficient within ±15% from -55°C to +125°C.
• Case Size: 1812 (4532 Metric). This refers to the physical dimensions of the capacitor (4.5mm x 3.2mm).
• Termination: Sn (Tin).
• High Reliability: MLCCs are known for their reliability and long lifespan.
• High Voltage Rating: Suitable for high-voltage applications.

Benefits

• Stable Performance over Temperature: The X7R temperature characteristic ensures stable capacitance over a broad temperature range.
• High Voltage Capability: Can withstand high voltage levels, making it suitable for power circuits.
• Robust Construction: The 1812 case size offers good mechanical strength.
• Long Lifespan: MLCCs offer a long operational life, contributing to the overall reliability of the application.
• Effective Decoupling and Filtering: The capacitor's characteristics make it effective for decoupling and filtering noise in sensitive circuits.

Additional Details

The CKG45NX7R2E474MT009W capacitor utilizes a ceramic dielectric material. It is designed for surface mount technology (SMT) assembly. Proper soldering techniques are crucial when working with SMD components like this capacitor. The 'MT009W' portion of the part number likely refers to TDK's internal manufacturing code or packaging details. The capacitor should be stored in a controlled environment to prevent degradation of the terminations. Consult the manufacturer's datasheet for complete specifications, including tolerance, ESR (Equivalent Series Resistance), and other performance characteristics.
