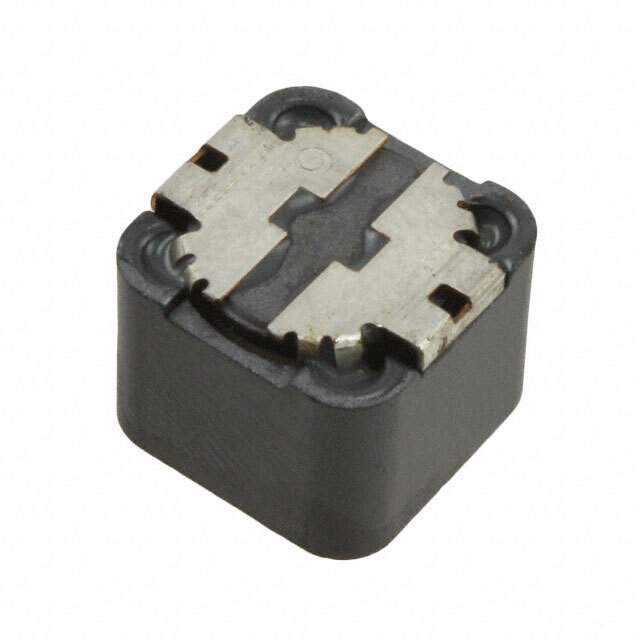

SRR1210-3R3Y Real Image
Same model may have multiple batches, images only for reference.

SRR1210-3R3Y

Part No SRR1210-3R3Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 3.3UH 9A 10 MOHM SMD / 3.3 µH Shielded Drum Core, Wirewound Inductor 9 A 10mOhm Max Nonstandard
Datasheet
SRR1210-3R3Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 3.3 µH
Tolerance ±30%
Current Rating (Amps) 9 A
Current - Saturation (Isat) 10.5A
Shielding Shielded
DC Resistance (DCR) 10mOhm Max
Q @ Freq 15 @ 7.96MHz
Frequency - Self Resonant 44MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Base Product Number SRR1210
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number SRR1210-3R3YDKR,SRR1210-3R3YCT,SRR1210-3R3Y-ND,SRR1210-3R3YTR
Standard Package 250
Win Source Part Number 1327831-SRR1210-3R3Y
Ultra Librarian 3D Model Ultra Librarian SRR1210-3R3Y CAD Model

Description

The SRR1210-3R3Y is a fixed inductor from Bourns Inc.

  • Core Type: Drum core, wirewound
  • Shielding: Shielded
  • Inductance: 3.3 μH
  • Tolerance: ±30%
  • DC Resistance (DCR): 10mOhm max
  • Current Rating: 9A
  • Q @ Freq: 15 @ 7.96MHz
  • Self-Resonant Frequency: 44MHz
  • Material: Ferrite
  • Size: 0.472" L x 0.472" W (12.00mm x 12.00mm)
  • Height: 0.394" (10.00mm) when seated
  • Package: Non-standard
  • MSL Level: 1 (unlimited)
  • REACH Status: REACH unaffected
  • Frequency Test: 100 kHz
  • HTSUS: 8504.50.4000
  • Other Part Numbers: SRR1210-3R3YDKR, SRR1210-3R3YCT, SRR1210-3R3Y-ND, SRR1210-3R3YTR
  • Base Product Number: SRR1210
  • ROHS3 Compliant: Yes
