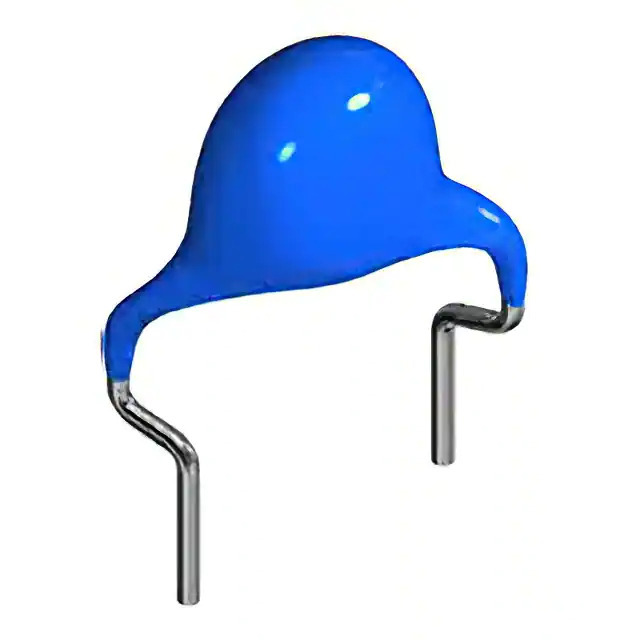

CK45-B3FD471KYNNA TDK Corporation
Same model may have multiple batches, images only for reference.

CK45-B3FD471KYNNA

Part No CK45-B3FD471KYNNA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 470PF 3KV RADIAL / 470 pF ±10% 3000V (3kV) Ceramic Capacitor B Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CK45
Package Bulk
Product Status Active
Capacitance 470 pF
Tolerance ±10%
Voltage - Rated 3000V (3kV)
Temperature Coefficient B
Temperature Range - Operating -25°C ~ 105°C
Features High Voltage
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.276" Dia (7.00mm)
Height - Seated (Max) 0.433" (11.00mm)
Thickness (Max) -
Lead Spacing 0.295" (7.50mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1359940-CK45-B3FD471KYNNA
Ultra Librarian 3D Model Ultra Librarian CK45-B3FD471KYNNA CAD Model

Description

The TDK Corporation CK45 Series CK45-B3FD471KYNNA is a radial disc ceramic capacitor designed for use in general purpose applications.

  • Product Name: CK45-B3FD471KYNNA
  • Manufacturer: TDK Corporation
  • Series: CK45
  • Operating Temperature: -25°C to 105°C
  • Capacitance: 470pF
  • Voltage Rating: 3000V (3kV)
  • Size: 0.276" Dia (7.00mm)
  • Height: 0.433" (11.00mm)
  • Mounting Type: Through-Hole
  • Capacitance Tolerance: ±10%
  • Application: General-Purpose
  • Package: Radial Disc
