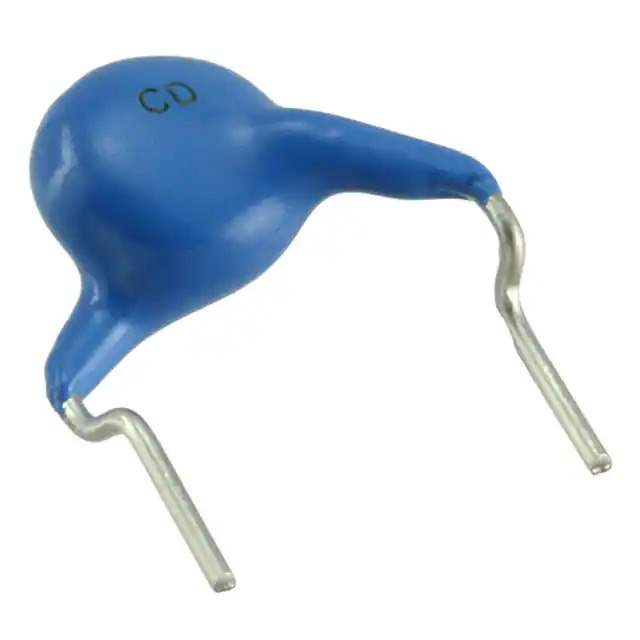

CD45-E2GA681M-NKA Real Image
Same model may have multiple batches, images only for reference.

CD45-E2GA681M-NKA

Part No CD45-E2GA681M-NKA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 680PF 440VAC RADIAL / 680 pF ±20% 440VAC Ceramic Capacitor E Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CD
Package Bulk
Product Status Active
Capacitance 680 pF
Tolerance ±20%
Voltage - Rated 440VAC
Temperature Coefficient E
Temperature Range - Operating -25°C ~ 105°C
Features High Voltage
Ratings X1, Y1
Applications Safety
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.256" Dia (6.50mm)
Height - Seated (Max) 0.413" (10.50mm)
Lead Spacing 0.394" (10.00mm)
Lead Style Formed Leads - Kinked
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.23.0060
Win Source Part Number 915114-CD45-E2GA681M-NKA
Ultra Librarian 3D Model Ultra Librarian CD45-E2GA681M-NKA CAD Model

Description

The CD45-E2GA681M-NKA is a high voltage ceramic capacitor from the CD series. The TDK Corporation manufactures this active product, and it has a capacitance of 680 pF and is rated for a voltage of 440VAC.

  • Capacitance: 680 pF
  • Voltage Rating: 440VAC
  • Tolerance: ±20%
  • Application: Safety
  • Safety Ratings: X1, Y1
  • Packaging: Bulk
  • Diameter: 0.256" (6.50mm)
  • Height: 0.413" (10.50mm)
  • Product Status: Active
  • Series: CD
  • Manufacturer: TDK Corporation
