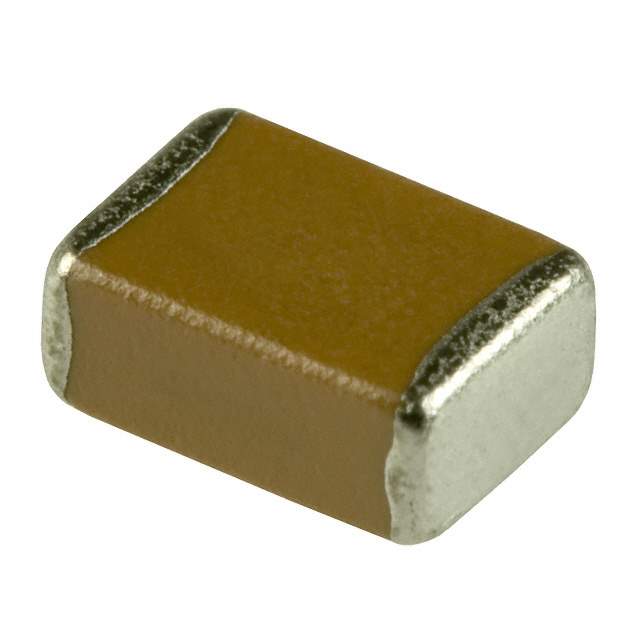

The C4532X7R1C336MT000N is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation, designed for general-purpose applications requiring stable capacitance and reliability.

Applications

• Decoupling in power supplies
• Smoothing and filtering in electronic circuits
• Bypass capacitors in digital systems
• General-purpose applications in electronic devices
• DC-DC converter circuits

Features

• Capacitance: 33µF (Microfarads)
• Voltage Rating: 16V
• Temperature Coefficient: X7R (-55 to +125°C, ±15% capacitance change)
• Case Size: 1812 (4532 Metric)
• Termination Type: SMD/SMT (Surface Mount Device)

Benefits

• High Capacitance: 33µF capacitance provides substantial charge storage.
• Stable Performance: X7R dielectric ensures capacitance remains relatively stable over a wide temperature range.
• Compact Size: 1812 case size allows for high-density board layouts.
• Reliable: TDK MLCCs are known for their robustness and long lifespan.
• Easy Assembly: Surface mount design facilitates automated assembly.

Additional Details

The C4532X7R1C336MT000N capacitor uses a ceramic dielectric material for high performance and stability. It is suitable for reflow soldering processes. The 'MT000N' portion of the part number is an internal TDK code specifying termination and packaging details. Proper storage and handling are essential to prevent damage to the component. The X7R characteristic indicates that the capacitance will change by no more than ±15% over the temperature range of -55°C to +125°C. This makes it suitable for applications where temperature stability is critical.
