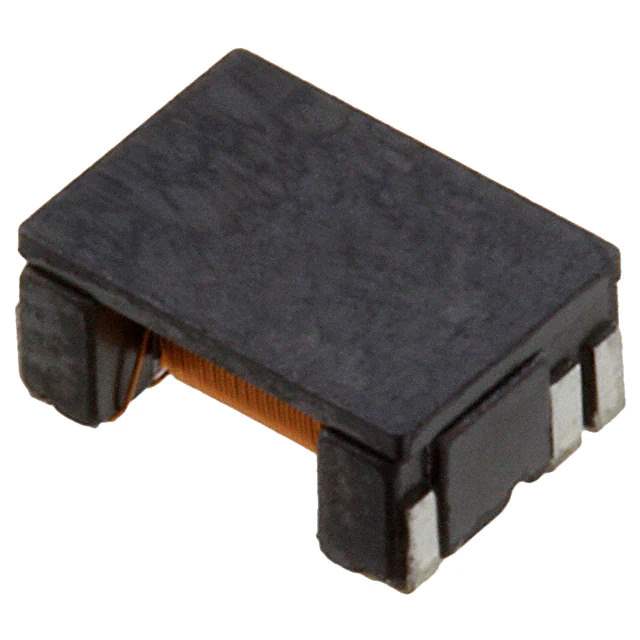

ALT4532M-171-T001 Real Image
Same model may have multiple batches, images only for reference.

ALT4532M-171-T001

Part No ALT4532M-171-T001
Manufacturer TDK Corporation
Catalog Pulse Transformers
Description XFRMR LAN 1CT:1CT 170UH / 170μH LAN Pulse Transformer 1CT:1CT Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr TDK Corporation
Series ALT
Package Tape & Reel
Product Status Active
Transformer Type LAN
Inductance 170µH
Mounting Type Surface Mount
Size / Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) 0.087" (2.20mm)
Temperature Range - Operating -40°C ~ 85°C
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 848924-ALT4532M-171-T001
Ultra Librarian 3D Model Ultra Librarian ALT4532M-171-T001 CAD Model

Description

The ALT4532M-171-T001 is a pulse transformer from TDK Corporation.

  • Series: ALT
  • Category: Transformers - Pulse Transformers
  • Mounting Type: Surface Mount
  • Size / Dimension: 0.177" L x 0.126" W (4.50mm x 3.20mm)
  • Height - Seated (Max): 0.087" (2.20mm)
  • Packaging: Tape & Reel (TR)
  • Standard Package: 2,000 pcs
  • Inductance: 170 μH
  • Operating Temperature: -40°C to 85°C
  • ECCN: EAR99
  • REACH Status: Unaffected
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8504.31.2000
