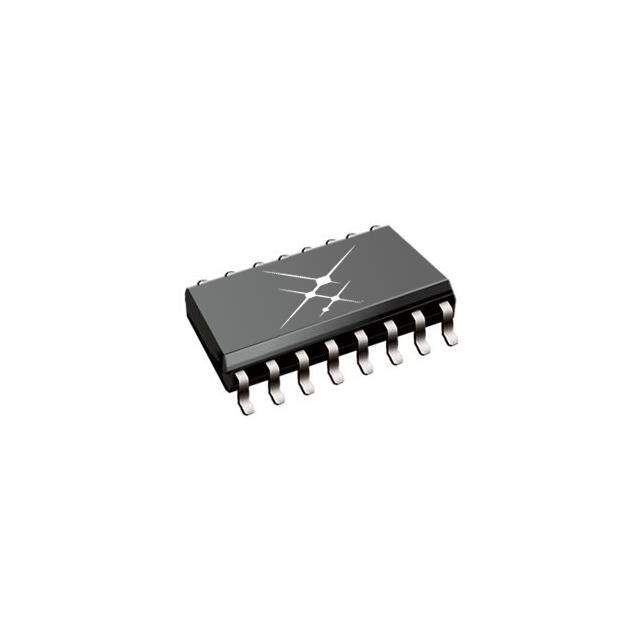

SI823H7BB-IS1 Real Image
Same model may have multiple batches, images only for reference.

SI823H7BB-IS1

Part No SI823H7BB-IS1
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description 2.5KV DUAL GATE DRIVERS, LOW PRO / 6A Gate Driver Capacitive Coupling 2500Vrms 2 Channel 16-SOIC
Datasheet
SI823H7BB-IS1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Series Si823Hx
Package Tube
Technology Capacitive Coupling
Number of Channels 2
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 125kV/µs
Propagation Delay tpLH / tpHL (Max) 30ns, 30ns
Pulse Width Distortion (Max) 5ns
Rise / Fall Time (Typ) 12ns, 12ns (Max)
Current - Output High, Low 4A, 4A
Current - Peak Output 6A
Voltage - Output Supply 7V ~ 8.2V
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)
Package / Case 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package 16-SOIC
Approval Agency CQC, CSA, UL, VDE
Base Product Number SI823
Other Names 336-5915
Standard Package 48
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243497-SI823H7BB-IS1
Ultra Librarian 3D Model Ultra Librarian SI823H7BB-IS1 CAD Model

Description

This isolator is designed for gate drivers and has 2 channels.

  • Application: Gate drivers
  • Channels: 2
  • Technology: Capacitive coupling technology
  • Voltage Isolation: 2500Vrms
  • Package: Tube
  • Standard Package: 48
  • Mounting: SMD (SMT)
  • Current Output High/Low: 4A, 4A
  • Propagation Delay tpLH/tpHL (Max): 30ns, 30ns
  • Rise/Fall Time: 12ns, 12ns (Max)
  • Common Mode Transient Immunity: 125kV/μs
  • Pulse Width Distortion: 5ns (Max)
  • Package/Case: 16-SOIC (0.154 inches, 3.90mm Width)
  • Supplier Device Package: 16-SOIC
  • Temperature Range for Operating: -40°C to 125°C
  • Manufacturer: Skyworks Solutions Inc.
  • Also known as: 336-5915
