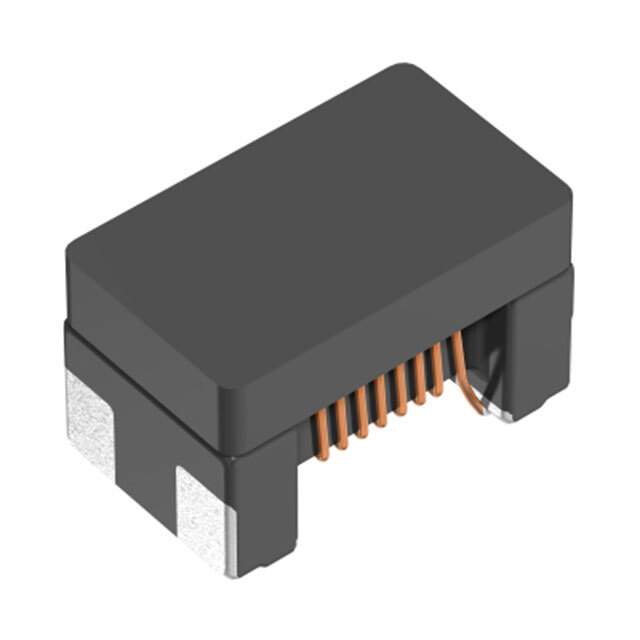

ACM2012H-381-2P-T05 Real Image
Same model may have multiple batches, images only for reference.

ACM2012H-381-2P-T05

Part No ACM2012H-381-2P-T05
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 300MA 2LN 380 OHM SMD  /  2 Line Common Mode Choke Surface Mount 380 Ohms @ 100 MHz 300mA DCR 500mOhm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr TDK Corporation
Series ACM-H
Package Tape & Reel
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 380 Ohms @ 100 MHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 500mOhm
Voltage Rating - DC 20V
Temperature Range - Operating -40°C ~ 105°C
Mounting SMD (SMT)
Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max) 0.051" (1.30mm)
Package / Case Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 445-180340-6,445-180340-1,445-180340-2
Standard Package 2,000
Win Source Part Number 967896-ACM2012H-381-2P-T05
Ultra Librarian 3D Model Ultra Librarian ACM2012H-381-2P-T05 CAD Model

Description

The TDK Corporation ACM2012H-381-2P-T05 is a common mode choke filter that is designed for signal line filtering.

  • Maximum DC Resistance: 500mOhm
  • Maximum Current: 300mA
  • Mounting Technology: SMD (SMT)
  • Packaging: Tape and Reel
  • Height: 1.30mm
  • Temperature Range: -40°C to 105°C
  • Cross-Reference: 445-180340-6, 445-180340-1, and 445-180340-2
