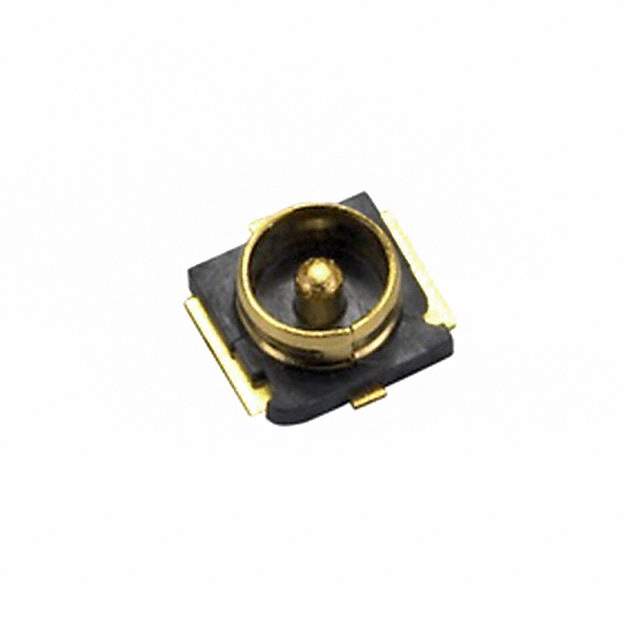

RECE.20369.001E-01 Real Image
Same model may have multiple batches, images only for reference.

RECE.20369.001E-01

Part No RECE.20369.001E-01
Manufacturer Taoglas Limited
Catalog Coaxial Connectors (RF)
Description CONN UMC RCPT STR 50 OHM SMD
Datasheet
RECE.20369.001E-01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Taoglas Limited
Packaging Reel - TR
Status Active
Connector Style Ultra Miniature Coaxial, IPEX MHF3
Connector Type Receptacle, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohm
Mounting SMD (SMT)
Fastening Type Snap-On
Maximum Input Frequency 6GHz
Housing Color Black
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -40°C to 90°C
Center Contact Material Brass
Win Source Part Number 1002973-RECE.20369.001E-01
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian RECE.20369.001E-01 CAD Model

Description

Taoglas Limited RECE.20369.001E-01 is an ultra-miniature coaxial connector that is designed with a receptacle, male pin connector type.

  • Connector Type: Receptacle, Male Pin
  • Fastening Type: Snap-On
  • Contact Termination: Solder
  • Connector Style: IPEX MHF3
  • Impedance: 50 Ohm
  • Mounting Type: SMD (SMT)
  • Temperature Range: -40°C to 90°C
  • Maximum Input Frequency: 6GHz
  • Supply and Demand Status: Sufficient
