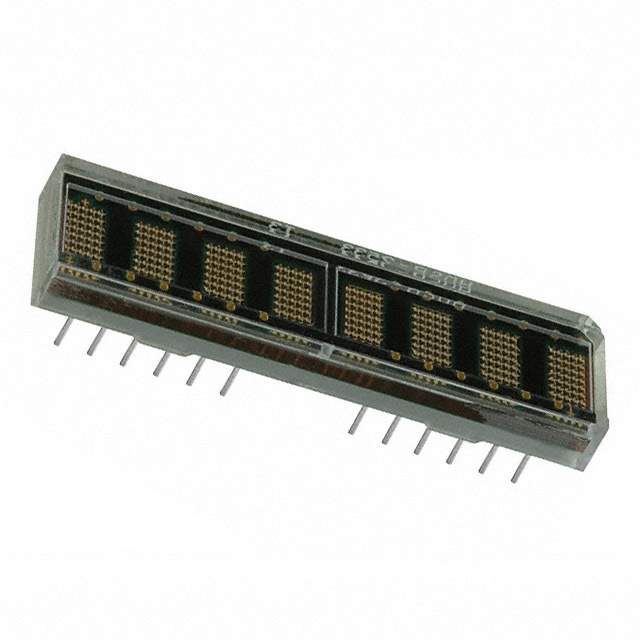

HDSP-2534 Real Image
Same model may have multiple batches, images only for reference.

HDSP-2534

Part No HDSP-2534
Manufacturer Broadcom Limited
Catalog Display Modules - LED Dot Matrix and Cluster
Description LED DISPLAY 5X7 8CHAR 5MM RED / AlphanumericDisplay Matrix Module 8DIGIT 280LED Red 24-Pin DIP Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Series HDSP-253x
Millicandela Rating 25mcd
Dimension 1.69" L x 0.45" W x 0.21" H (42.93mm x 11.43mm x 5.31mm)
Color Red
Configuration 5 x 7
Interface Parallel, 8-Bit
Win Source Part Number 775832-HDSP-2534
Popularity Medium
Supply and Demand Status Limited
Quantity per package 10
Family Name HDSP-2534
Introduction Date November 24, 2004
ECCN EAR99
Country of Origin Philippines
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian HDSP-2534 CAD Model

Description

The Broadcom Limited HDSP-2534 is a red LED display module from Broadcom Limited.

  • Series: HDSP-253x
  • Configuration: 5 x 7
  • Interface: Parallel, 8-bit
  • Millicandela: 25mcd
  • Dimension: 1.69" L x 0.45" W x 0.21" H (42.93mm x 11.43mm x 5.31mm)
  • Estimated EOL Date: 2025
  • Supply and Demand Status: Limited
  • Quantity Per Package: 10
