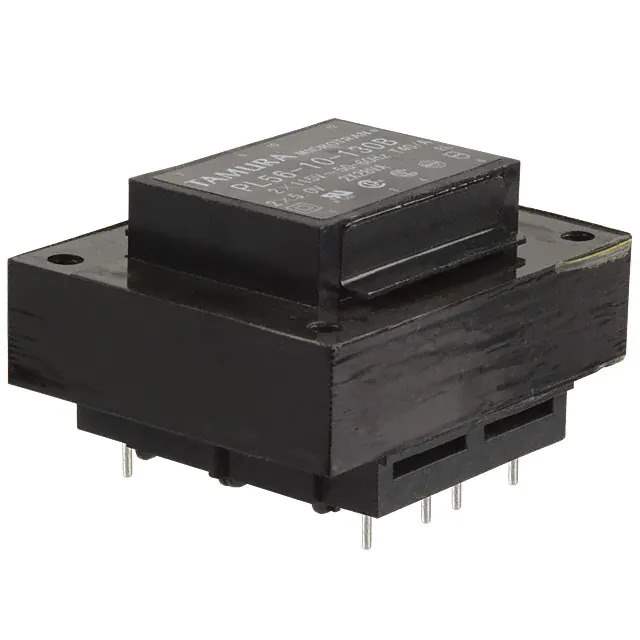

PL56-12-130B Real Image
Same model may have multiple batches, images only for reference.

PL56-12-130B

Part No PL56-12-130B
Manufacturer Tamura
Catalog Power Transformers
Description PWR XFMR LAMINATED 56VA TH
Datasheet
PL56-12-130B Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Power Transformers
Mfr Tamura
Series PL56-xx-130B
Package Bulk
Product Status Obsolete
Type Laminated Core
Voltage - Primary 115V, 230V
Voltage - Secondary (Full Load) Parallel 6.3V, Series 12.6V
Current - Output (Max) Parallel 8.8A, Series 4.4A
Primary Winding(s) Dual
Secondary Winding(s) Dual
Center Tap No
Power - Max 56VA
Mounting Type Through Hole
Termination Style PC Pin
Size / Dimension 76.20mm L x 64.00mm W
Height - Seated (Max) 48.50mm
Voltage - Isolation 3500Vrms
Standard Package 10 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.4035
Win Source Part Number 928272-PL56-12-130B
Ultra Librarian 3D Model Ultra Librarian PL56-12-130B CAD Model

Description

The PL56-12-130B is a power transformer from Tamura's PL56 series.

  • Series: PL56
  • Core Type: Laminated Core
  • Size: 76.20mm L x 64.00mm W
  • Seated Height: 48.50mm
  • Power Rating: 56VA
  • Isolation Voltage: 3500Vrms
  • Primary Windings: Dual 115V and 230V
  • Secondary Windings: Dual parallel 6.3V and series 12.6V
  • Parallel Output Current: 8.8A
  • Series Output Current: 4.4A
  • Mounting Type: Through-Hole
  • Status: Obsolete
