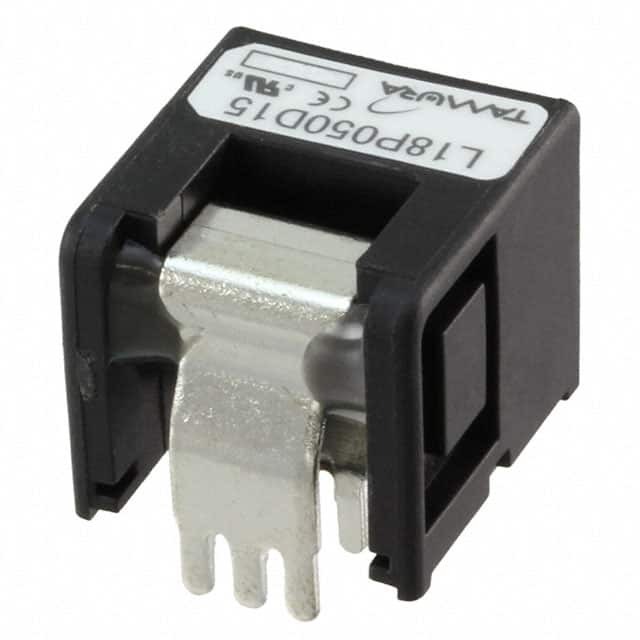

L18P050D15
Same model may have multiple batches, images only for reference.

L18P050D15

Part No L18P050D15
Manufacturer Tamura
Catalog Current Transducers
Description SENSOR CURRENT HALL 50A AC/DC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Current Sensors
Mfr Tamura
Series L18PXXXD15
Package Bulk
Product Status Obsolete
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 50A
Number of Channels 1
Output Ratiometric, Voltage
Frequency DC ~ 100kHz
Linearity ±1%
Voltage - Supply ±15V
Response Time 5µs
Current - Supply (Max) 15mA
Temperature Range - Operating -30°C ~ 80°C
Polarization Bidirectional
Mounting Type Through Hole
Package / Case Module
Standard Package 100 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 9030.33.3800
Win Source Part Number 847371-L18P050D15
Ultra Librarian 3D Model Ultra Librarian L18P050D15 CAD Model

Description

The L18PXXXD15 is a current sensor designed for measuring AC/DC current up to 50A.

  • Current - Sensing: 50A
  • Sensor Type: Current, AC/DC
  • Technology: Hall Effect, Open Loop
  • Response Time: 5µs
  • Frequency: DC ~ 100kHz
  • Current - Supply (Max): 15mA
  • Output: Ratiometric Voltage
  • Mounting Type: Through Hole
  • Package / Case: Module
  • Operating Temperature: -30°C ~ 80°C
  • Product Status: Obsolete
  • Manufacturer: Tamura
