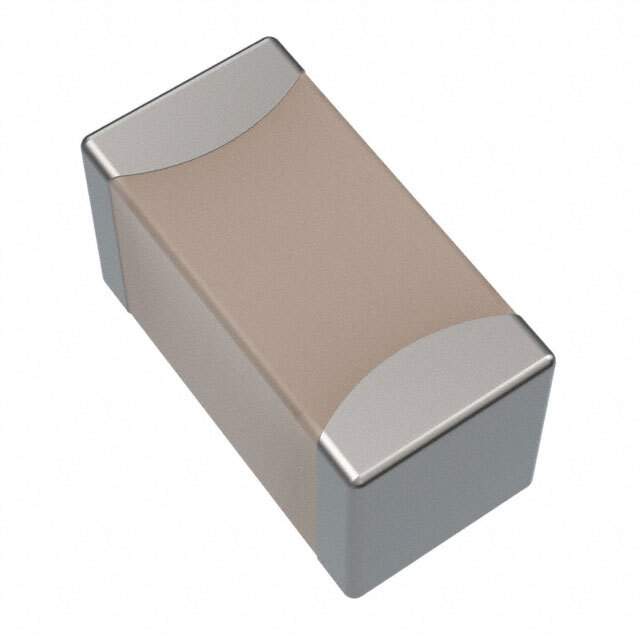

TMF316B7225KLHT Real Image1 TMF316B7225KLHT Real Image2
Same model may have multiple batches, images only for reference.
TMF316B7225KLHT Real Image1 TMF316B7225KLHT Real Image2
TMF316B7225KLHT Real Image1 TMF316B7225KLHT Real Image2
Same model may have multiple batches, images only for reference.

TMF316B7225KLHT

Part No TMF316B7225KLHT
Manufacturer Taiyo Yuden
Catalog Ceramic Capacitors
Description CAP CER 2.2UF 25V X7R 1206 / 2.2 µF ±10% 25V Ceramic Capacitor X7R 1206 (3216 Metric)
Datasheet
TMF316B7225KLHT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Taiyo Yuden
Series M
Package Tape & Reel
Product Status Not For New Designs
Capacitance 2.2 µF
Tolerance ±10%
Voltage - Rated 25V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features -
Ratings AEC-Q200
Applications Automotive, SMPS Filtering
Failure Rate -
Mounting Type Surface Mount, MLCC
Package / Case 1206 (3216 Metric)
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) -
Thickness (Max) 0.071" (1.80mm)
Lead Spacing -
Lead Style -
Base Product Number TMF316B
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8532.24.0020
Standard Package 2,000 pcs
Win Source Part Number 1383657-TMF316B7225KLHT
Ultra Librarian 3D Model Ultra Librarian TMF316B7225KLHT CAD Model

Description

The TMF316B7225KLHT is a ceramic capacitor from Taiyo Yuden's M series.

  • Designed for: automotive and SMPS filtering applications
  • Capacitance: 2.2µF
  • Voltage Rating: 25V
  • Tolerance: ±10%
  • Temperature Coefficient: X7R
  • Mounting Type: Surface Mountable
  • Package/Case: 1206 (3216 Metric)
  • Operating Temperature: -55°C to 125°C
  • Compliance: AEC-Q200 automotive standard
  • Manufacturer: Taiyo Yuden
