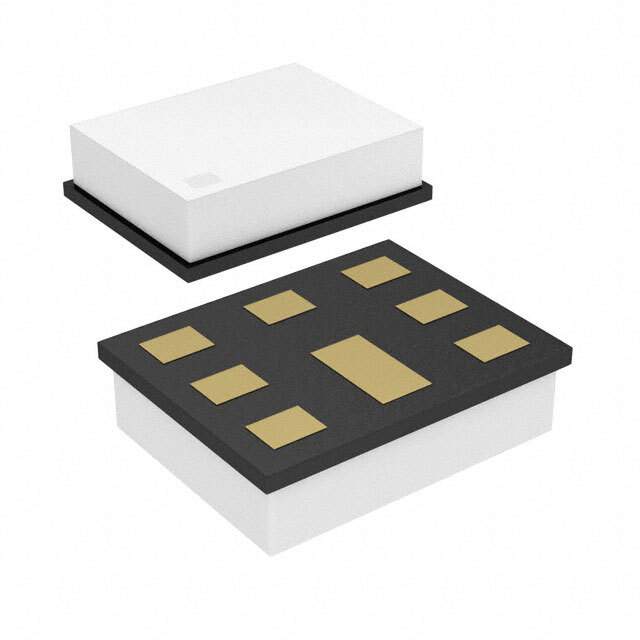

D6DA2G140K2A7-Z Real Image
Same model may have multiple batches, images only for reference.

D6DA2G140K2A7-Z

Part No D6DA2G140K2A7-Z
Manufacturer Taiyo Yuden
Catalog RF Diplexers
Description FBAR/SAW Devices (SAW Duplexers)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Taiyo Yuden
Packaging Reel - TR
High Band Attenuation (min / max dB) 45dB / 55dB
Mounting SMD
Package 8-SMD, No Lead
Win Source Part Number 1166239-D6DA2G140K2A7-Z
Manufacturer Homepage www.t-yuden.com/
Popularity Medium
Supply and Demand Status Limited
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian D6DA2G140K2A7-Z CAD Model

Description

The Taiyo Yuden RF/IF and RFID electronic component is a surface mount, no-lead package used in high band attenuation.

  • Mount: SMD
  • Minimum High Band Attenuation: 45dB
  • Maximum High Band Attenuation: 55dB
  • Return Loss (Low Band): Not Specified
  • Return Loss (High Band): Not Specified
  • Product Status: Active
  • Popularity: Medium
  • Quantity per Package: 3k pcs
