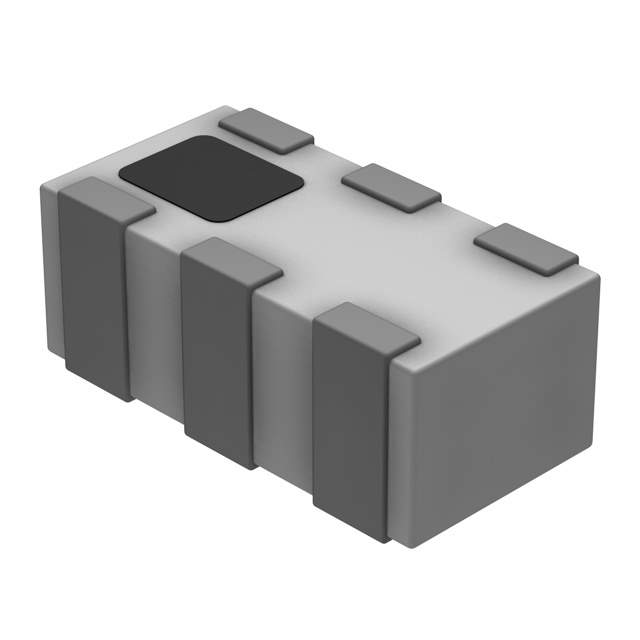

DPX165900DT-8125A1 Real Image
Same model may have multiple batches, images only for reference.

DPX165900DT-8125A1

Part No DPX165900DT-8125A1
Manufacturer TDK Corporation
Catalog RF Diplexers
Description DIPLEXER 2.4/5GHZ WLAN
Datasheet
DPX165900DT-8125A1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Frequency Bands (Low / High) 2.4GHz to 2.5GHz / 5.1GHz to 5.9GHz
Low Band Attenuation (min / max dB) 18.00dB / 24.00dB
High Band Attenuation (min / max dB) 20.00dB / 33.00dB
Return Loss (Low Band / High Band) 22dB / 13dB
Mounting SMD (SMT)
Dimension 0603 (1608 Metric), 6 PC Pad
Win Source Part Number 1033985-DPX165900DT-8125A1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DPX165900DT-8125A1 CAD Model

Description

The TDK Corporation DPX165900DT-8125A1 is a surface-mount duplex filter designed for RF/IF and RFID applications.

  • Frequency Bands: 2.4GHz to 2.5GHz and 5.1GHz to 5.9GHz
  • Low Band Attenuation: 18.00dB to 24.00dB
  • High Band Attenuation: 20.00dB to 33.00dB
  • Return Loss (Low Band): 22dB
  • Return Loss (High Band): 13dB
  • Mounting: 6 PC pad
  • Popularity: Popular
  • Supply and Demand: Balanced
