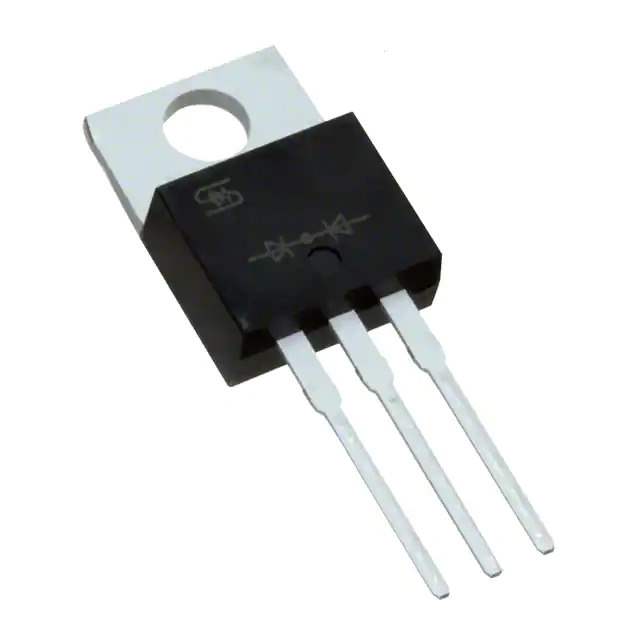

TST30L120CW Real Image
Same model may have multiple batches, images only for reference.

TST30L120CW

Part No TST30L120CW
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 120V 15A TO220AB
Datasheet
TST30L120CW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Taiwan Semiconductor
Package Tube
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 120 V
Current - Average Rectified (Io) 15A
Voltage - Forward (Vf) (Max) @ If 880 mV @ 15 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 200 µA @ 120 V
Mounting Type Through Hole
Package / Case TO-220-3
Supplier Device Package TO-220AB
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number TST30
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 692195-TST30L120CW
Ultra Librarian 3D Model Ultra Librarian TST30L120CW CAD Model

Description

The TST30L120CW is a fast recovery Schottky diode. It is designed for applications requiring high current capability and low forward voltage drop.

  • Maximum Reverse Voltage Rating: 120V
  • Maximum Forward Voltage Drop: 880mV @ a forward current of 15A
  • Recovery Time: less than 500ns
  • Leakage Current: 200μA @ the maximum reverse voltage
  • Package: TO-220-3
  • Mounting: Through Hole
  • Manufacturer: Taiwan Semiconductor
  • Status: Active
