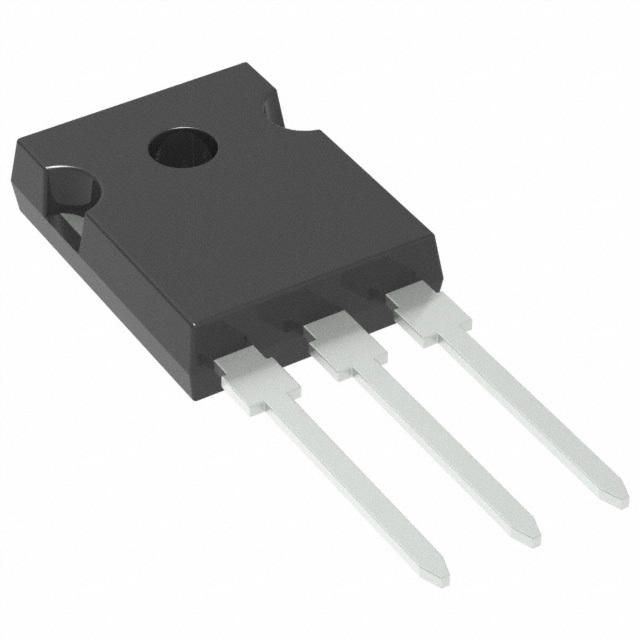

RGT80TS65DGC13

Name: RGT80TS65DGC13
Brand: Rohm Semiconductor
SKU: 1376600
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	RGT80TS65DGC13
Manufacturer	Rohm Semiconductor
Catalog	IGBTs - Single
Description	IGBT TRNCH FIELD 650V 70A TO247G
Datasheet	RGT80TS65DGC13 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - IGBTs - Single IGBTs
Mfr	Rohm Semiconductor
Series	-
Package	Tube
Product Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	650 V
Current - Collector (Ic) (Max)	70 A
Current - Collector Pulsed (Icm)	120 A
Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 40A
Power - Max	234 W
Switching Energy	-
Input Type	Standard
Gate Charge	79 nC
Td (on/off) @ 25°C	34ns/119ns
Test Condition	400V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr)	236 ns
Temperature Range - Operating	-40°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	TO-247G
Base Product Number	RGT80
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1376600-RGT80TS65DGC13
Ultra Librarian 3D Model	Ultra Librarian RGT80TS65DGC13 CAD Model

Description

The RGT80TS65DGC13 is a single IGBT transistor designed for discrete semiconductor applications. It is manufactured by Rohm Semiconductor.

Operating Temperature: 175°C (Max)
Collector Current: 70A (Max)
Collector-Emitter Breakdown Voltage: 650V
Power Rating: 234W
Gate Charge: 79nC
IGBT Type: Trench Field Stop
Input Type: Standard
Reverse Recovery Time (trr): 236ns
td (on/off) @ 25°C: 34ns/119ns
Package: TO-247-3
Mounting: Through-Hole
REACH: Unaffected
ECCN: EAR99
Status: Active
