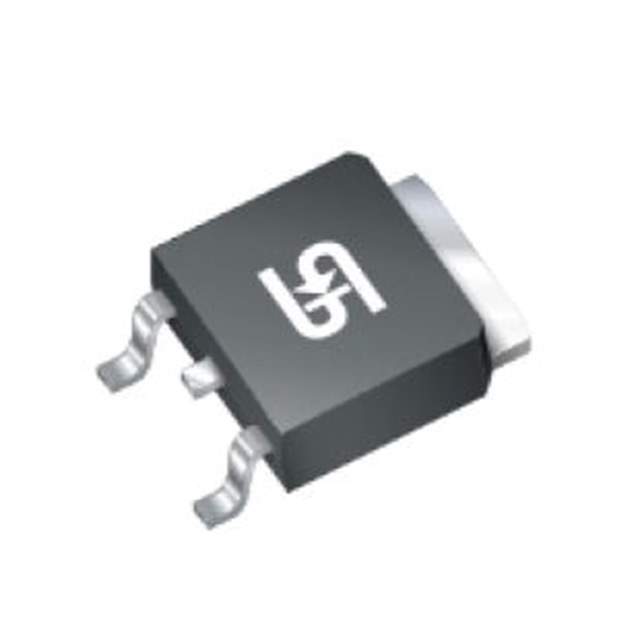

TSM170N06CP ROG

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TSM170N06CP ROG
Manufacturer	Taiwan Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CHANNEL 60V 38A TO252 / N-Channel 60 V 38A (Tc) 46W (Tc) Surface Mount TO-252, (D-Pak)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Taiwan Semiconductor Corporation
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	38A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	17mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	28.5 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	900 pF @ 25 V
Power Dissipation (Max)	46W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	TO-252, (D-Pak)
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Base Product Number	TSM170
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	TSM170N06CP ROGDKR,TSM170N06CP ROGCT,TSM170N06CP ROGTR,TSM170N06CPROGDKR,TSM170N06CPROGTR,TSM170N06CP ROGTR-ND,TSM170N06CPROGCT,TSM170N06CP ROGCT-ND,TSM170N06CP ROGDKR-ND
Standard Package	2,500
Win Source Part Number	1005415-TSM170N06CP ROG
Ultra Librarian 3D Model	Ultra Librarian TSM170N06CP ROG CAD Model

Alternative Products

Description

The TSM170N06CP ROG is an N-Channel MOSFET transistor designed for use in discrete semiconductor products such as transistors, FETs, and MOSFETs.

Drain to Source Voltage: 60V
Continuous Drain Current: 38A @ 25°C
Rds On (Max) @ Id, Vgs: 17mOhm @ 20A, 10V
Vgs (Max): ±20V
Mounting: SMD (SMT) technology
Package: TO-252-3, DPak (2 Leads + Tab), SC-63
Gate Charge (Qg) (Max) @ Vgs: 28.5 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 900 pF @ 25 V
Operating Temperature Range: -55°C to 150°C (TJ)
MSL Level: 3 (168 Hours)
HTSUS: 8541.29.0095
