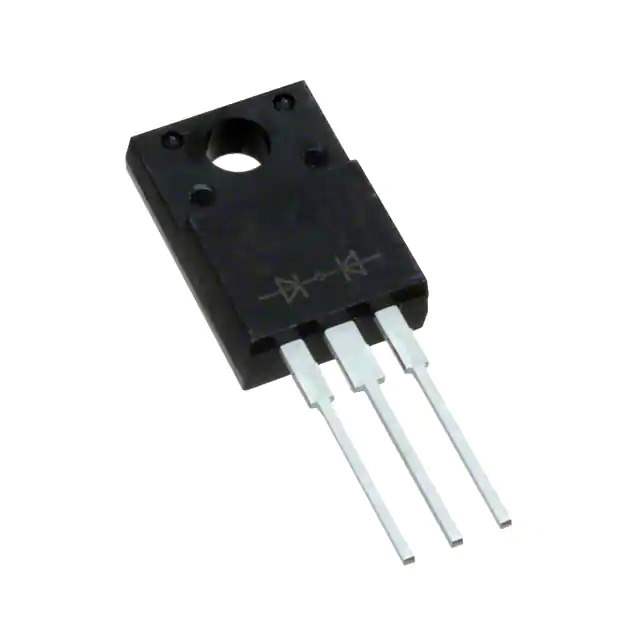

TSF10H100C Real Image
Same model may have multiple batches, images only for reference.

TSF10H100C

Part No TSF10H100C
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTT 100V ITO220AB
Datasheet
TSF10H100C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Taiwan Semiconductor
Package Tube
Product Status Active
Diode Configuration 1 Pair Common Cathode
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) (per Diode) 5A
Voltage - Forward (Vf) (Max) @ If 700 mV @ 5 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 100 µA @ 100 V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Type Through Hole
Package / Case TO-220-3 Full Pack, Isolated Tab
Supplier Device Package ITO-220AB
Base Product Number TSF10
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 692003-TSF10H100C
Ultra Librarian 3D Model Ultra Librarian TSF10H100C CAD Model

Description

The 692003-TSF10H100C is a fast recovery Schottky diode array designed for rectification purposes in electronic circuits.

  • Maximum Reverse Voltage: 100 V
  • Forward Voltage Drop: 700 mV @ 5 A
  • Diode Configuration: 1 pair of common cathode
  • Operating Temperature Range: -55°C to 150°C
  • Package Type: TO-220-3 Full Pack with an isolated tab
  • Mounting: through-hole mounting
  • Standard Package: 50 pieces
