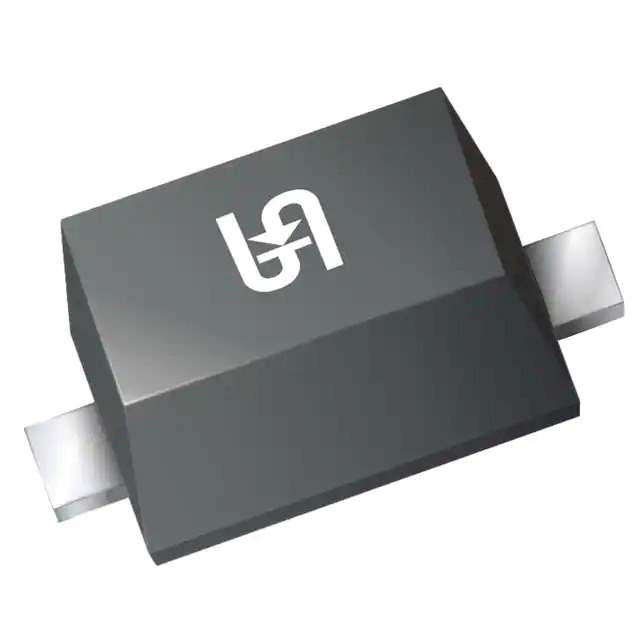

BZT52C20S Real Image
Same model may have multiple batches, images only for reference.

BZT52C20S

Part No BZT52C20S
Manufacturer Taiwan Semiconductor
Catalog Diodes - Zener - Single
Description SOD-323F, 200MW, 5%, SMALL SIGNA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Zener - Single Zener Diodes
Mfr Taiwan Semiconductor
Package Tape & Reel
Product Status Active
Voltage - Zener (Nom) (Vz) 20 V
Tolerance ±5%
Power - Max 200 mW
Impedance (Max) (Zzt) 55 Ohms
Current - Reverse Leakage @ Vr 45 nA @ 14 V
Voltage - Forward (Vf) (Max) @ If 1 V @ 10 mA
Temperature Range - Operating -65°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SC-90, SOD-323F
Supplier Device Package SOD-323F
Base Product Number BZT52C
Standard Package 3,000 pcs
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Win Source Part Number 574594-BZT52C20S
Ultra Librarian 3D Model Ultra Librarian BZT52C20S CAD Model

Description

The BZT52C20S is a single zener diode designed for discrete semiconductor applications.

  • Zener Voltage: 20V
  • Zener Voltage Tolerance: ±5%
  • Power Rating: 200mW
  • Forward Voltage: 1V @ 10mA Forward Current
  • Reverse Leakage Current: 45nA @ 14V Reverse Voltage
  • Mounting Type: Surface Mount
  • Package: SC-90 and SOD-323F
  • Operating Temperature: -65°C to 150°C
  • Manufacturer: Taiwan Semiconductor
  • Product Status: Active
  • Standard Package: 3,000 pieces
