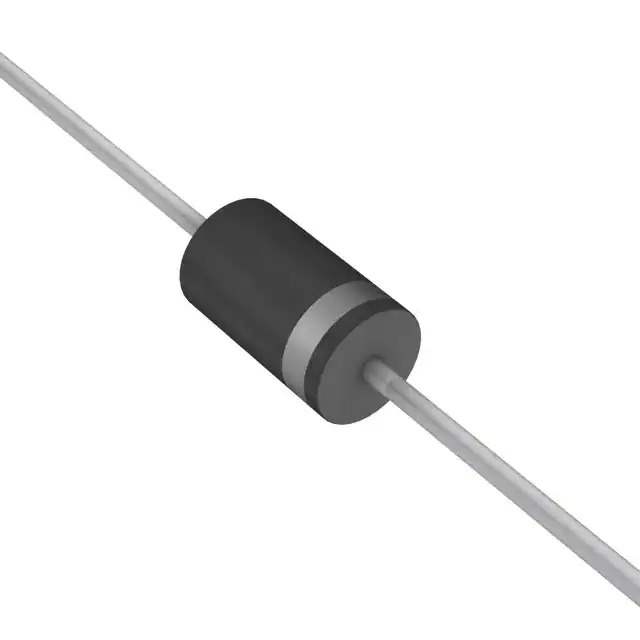

SR805 Real Image
Same model may have multiple batches, images only for reference.

SR805

Part No SR805
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 50V 8A DO201AD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Taiwan Semiconductor
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 50 V
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Max) @ If 700 mV @ 8 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 50 V
Mounting Type Through Hole
Package / Case DO-201AD, Axial
Supplier Device Package DO-201AD
Operating Temperature - Junction -55°C ~ 150°C
Standard Package 1,250 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 675961-SR805
Ultra Librarian 3D Model Ultra Librarian SR805 CAD Model

Description

The SR805 is a single schottky diode with a maximum reverse voltage of 50 V.

  • Reverse Voltage: maximum reverse voltage of 50 V
  • Average Rectified Current: average rectified current of 8A
  • Forward Voltage: forward voltage of 700 mV @ a current of 8 A
  • Reverse Leakage Current: reverse leakage current @ the rated voltage is 500 μA
  • Mounting Type: designed for through-hole mounting
  • Package: comes in a DO-201AD, Axial package
  • Packaging: supplied in a tape and reel package containing 1,250 pieces
  • Operating Temperature Range: from -55°C to 150°C
  • Manufacturer: active product from Taiwan Semiconductor
