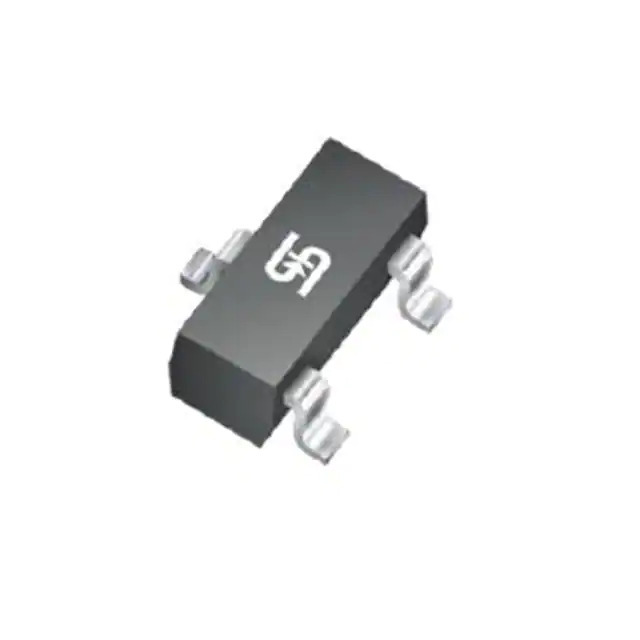

MMBD4148CC RFG Taiwan Semiconductor
Same model may have multiple batches, images only for reference.

MMBD4148CC RFG

Part No MMBD4148CC RFG
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 100V 200MA SOT23
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Taiwan Semiconductor Corporation
Series -
Package Tape & Reel
Product Status Active
Diode Configuration 1 Pair Common Cathode
Technology Standard
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) (per Diode) 200mA
Voltage - Forward (Vf) (Max) @ If 1 V @ 10 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 4 ns
Current - Reverse Leakage @ Vr 5 µA @ 75 V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23
Base Product Number MMBD4148
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1367340-MMBD4148CC RFG
Ultra Librarian 3D Model Ultra Librarian MMBD4148CC RFG CAD Model

Description

The MMBD4148CC RFG is a diode array from Taiwan Semiconductor Corporation.

  • Category: Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
  • Package: TO-236-3, SC-59, SOT-23-3
  • Supplier Device Package: SOT-23
  • Maximum DC Reverse Voltage: 100V
  • Maximum Forward Voltage: 1V @ 10mA
  • Recovery Speed: Fast, less than 500ns
  • Reverse Recovery Time: 4ns
  • Diode Configuration: 1 Pair Common Cathode
  • Operating Temperature: -55°C to 150°C
