Same model may have multiple batches, images only for reference.

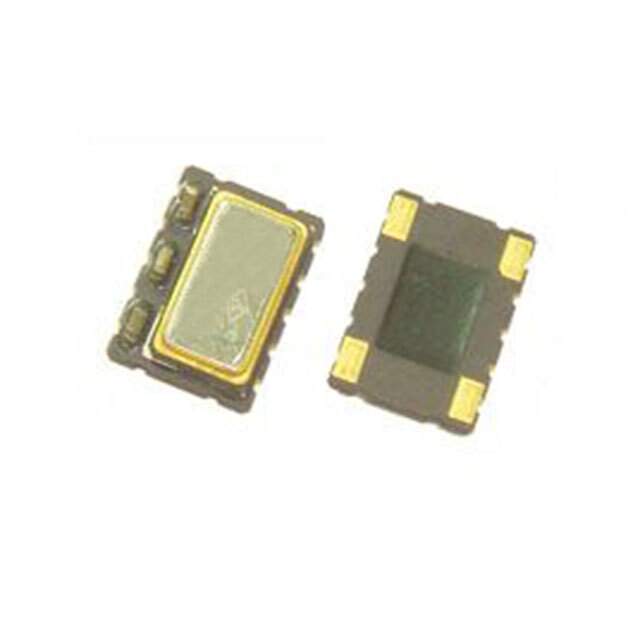

TTEAALJANF-50.000000 Real Image
Same model may have multiple batches, images only for reference.

TTEAALJANF-50.000000

Part No TTEAALJANF-50.000000
Manufacturer Taitien
Catalog Oscillators
Description XTAL OSC VCTCXO 50.0000MHZ CMOS / 50 MHz VCTCXO CMOS Oscillator 3.3V 4-SMD, No Lead Exposed Pad
Datasheet
TTEAALJANF-50.000000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Taitien
Series TT
Package Strip
Base Resonator Crystal
Type VCTCXO
Frequency 50 MHz
Output CMOS
Voltage - Supply 3.3V
Frequency Stability ±500ppb
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 6mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead Exposed Pad
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.083" (2.10mm)
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8542.39.0001
California Prop 65 Warning Information
Win Source Part Number 1336760-TTEAALJANF-50.000000
Ultra Librarian 3D Model Ultra Librarian TTEAALJANF-50.000000 CAD Model

Description

The oscillator electronic component with Win Source Part Number 1336760-TTEAALJANF-50.000000 is a VCTCXO type of crystal, oscillator, resonator. Win Source

  • Type: VCTCXO
  • Frequency: 50 MHz
  • Frequency Stability: ±500ppb
  • Output: CMOS
  • Maximum Supply Current: 6mA
  • Voltage Supply: 3.3V
  • Temperature Range: -40°C ~ 85°C
  • Mounting Type: Surface Mount
  • Package/Case: 4-SMD, No Lead Exposed Pad
