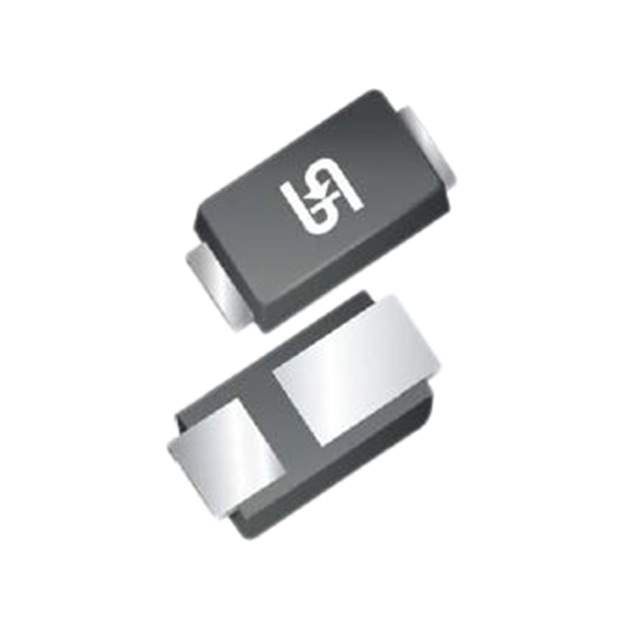

ESH1DM RSG Real Image
Same model may have multiple batches, images only for reference.

ESH1DM RSG

Part No ESH1DM RSG
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE, ULTRA FAST, 1A, 200V, 25N
Datasheet
ESH1DM RSG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Taiwan Semiconductor
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.5V @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 25ns
Current - Reverse Leakage @ Vr 1μA @ 200V
Capacitance @ Vr, F 3pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package Micro SMA
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 1037187-ESH1DM RSG
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ESH1DM RSG CAD Model

Description

The ESH1DM RSG diode is a standard type with a Micro SMA case/package.

  • Diode Type: Standard
  • Case/Package: Micro SMA
  • Voltage - DC Reverse (Vr) (Max): 200V
  • Average Rectified Current (Io): 1A
  • Forward Voltage (Vf) (Max) @ If: 1.5V @ 1A
  • Reverse Recovery Time (trr): 25ns
  • Current - Reverse Leakage @ Vr: 1μA @ 200V
  • Capacitance @ Vr, F: 3pF @ 4V, 1MHz
  • Operating Temperature Range: -55°C to 150°C
  • Application: Discrete Semiconductor Products
