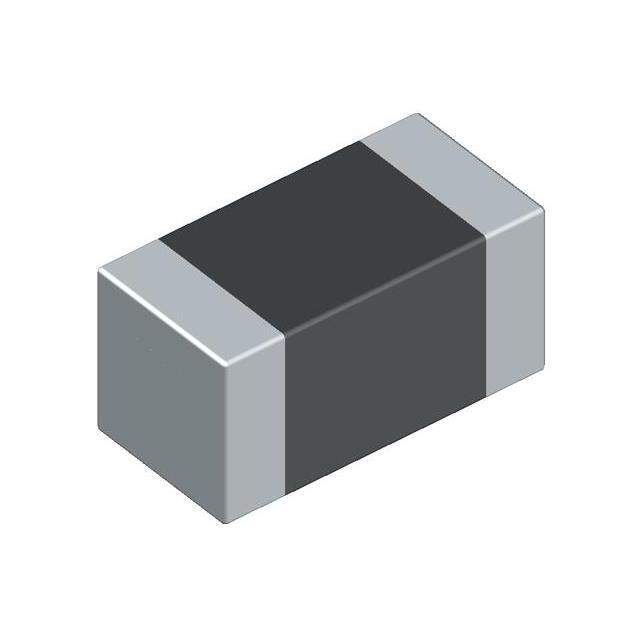

HCB 1005KF-121T20 Real Image1

HCB 1005KF-121T20 Real Image1

HCB 1005KF-121T20 Real Image2

Same model may have multiple batches, images only for reference.

HCB 1005KF-121T20 Real Image1

HCB 1005KF-121T20 Real Image2

Same model may have multiple batches, images only for reference.

HCB 1005KF-121T20

Get a Quote

Part No	HCB 1005KF-121T20
Manufacturer	TAI-TECH Advanced Electronics
Catalog	Ferrite Beads and Chips
Description	120 OHMS @ 100 MHZ 1 POWER LINE / 120 Ohms @ 100 MHz 1 Power Line Ferrite Bead 0402 (1005 Metric) 2A 95mOhm
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters>Ferrite Beads and Chips
Mfr	TAI-TECH Advanced Electronics
Series	HCB1005
Package	Tape & Reel
Filter Type	Power Line
Number of Lines	1
Impedance @ Frequency	120 Ohms @ 100 MHz
Current Rating (Max)	2A
DC Resistance (DCR) (Max)	95mOhm
Ratings	-
Temperature Range - Operating	-
Package / Case	0402 (1005 Metric)
Mounting Type	Surface Mount
Height (Max)	0.024" (0.60mm)
Size / Dimension	0.039" L x 0.020" W (1.00mm x 0.50mm)
Features	-
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Standard Package	10,000 pcs
Win Source Part Number	1382205-HCB 1005KF-121T20
Ultra Librarian 3D Model	Ultra Librarian HCB 1005KF-121T20 CAD Model

Alternative Products

Description

The HCB1005KF-121T20 is a power line ferrite bead chip designed for electronic filters.

Series: HCB1005
Package Size: 0.039" L x 0.020" W (1.00mm x 0.50mm)
Maximum Current Rating: 2A
DC Resistance (DCR): 95mOhm
Impedance (@ 100 MHz): 120 Ohms
Mounting Type: Surface Mount
Standard Package: 10,000 Pieces
Manufacturer: TAI-TECH Advanced Electronics
REACH Status: Unaffected
Moisture Sensitivity Level: 1 (Unlimited)
