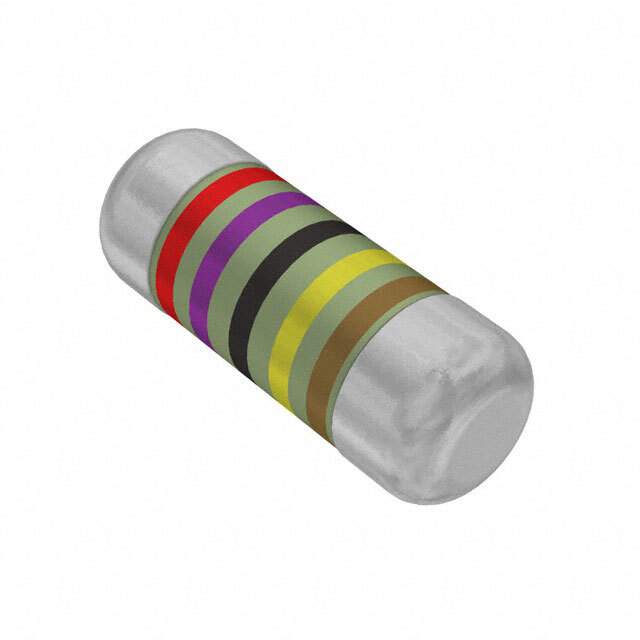

SMM02070C2709FBP00 Real Image1 SMM02070C2709FBP00 Real Image2
Same model may have multiple batches, images only for reference.
SMM02070C2709FBP00 Real Image1 SMM02070C2709FBP00 Real Image2
SMM02070C2709FBP00 Real Image1 SMM02070C2709FBP00 Real Image2
Same model may have multiple batches, images only for reference.

SMM02070C2709FBP00

Part No SMM02070C2709FBP00
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 27 OHM 1% 1W MELF / 27 Ohms ±1% 1W Chip Resistor MELF, 0207 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thin Film
Datasheet
SMM02070C2709FBP00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay
Series SMM0207
Package Tape & Reel
Resistance 27 Ohms
Tolerance ±1%
Power (Watts) 1W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case MELF, 0207
Supplier Device Package MELF
Ratings AEC-Q200
Size / Dimension 0.087" Dia x 0.228" L (2.20mm x 5.80mm)
Height - Seated (Max) -
Number of Terminations 2
Failure Rate -
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0040
Standard Package 1,500 pcs
Win Source Part Number 1383484-SMM02070C2709FBP00
Ultra Librarian 3D Model Ultra Librarian SMM02070C2709FBP00 CAD Model

Description

The Vishay SMM02070C2709FBP00 chip resistor is a high-quality component suitable for various surface mount applications. With a resistance of 27 Ohms and a power rating of 1W, this resistor offers reliable performance.

  • Resistance: 27 Ohms
  • Power (Watts): 1W
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Technology: Thin Film
  • Package / Case: MELF
  • Size / Dimension: 0.087" Dia x 0.228" L (2.20mm x 5.80mm)
  • Packaging: Tape & Reel (TR)
  • Manufacturer: Vishay
