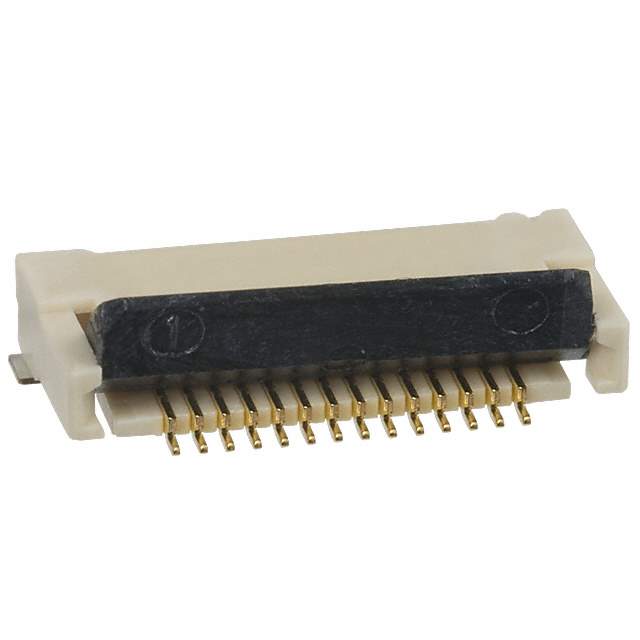

XF2M-2415-1A-R100 Real Image
Same model may have multiple batches, images only for reference.

XF2M-2415-1A-R100

Part No XF2M-2415-1A-R100
Manufacturer Omron
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC 24POS 0.50MM R/A / 24 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Omron Electronics Inc-EMC Div
Series XF2M
Package Tape & Reel (TR)
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 24
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.083" (2.10mm)
Locking Feature Rotary Lock, Backlock
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Voltage Rating 50V
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 5.90µin (0.150µm)
Housing Color Natural
Actuator Color Black
Mating Cycles 20
Base Product Number XF2M
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names 2266-XF2M-2415-1A-R100,XF2M24151AR100
Standard Package 100
Win Source Part Number 1178584-XF2M-2415-1A-R100
Ultra Librarian 3D Model Ultra Librarian XF2M-2415-1A-R100 CAD Model

Description

The XF2M-2415-1A-R100 connector is a 24-position FFC/FPC connector from Omron Electronics Inc-EMC Div.

  • Mounting Type: Surface Mount, Right Angle
  • Pitch: 0.020 inches (0.50mm)
  • Cable Type: Flat Flex FPC
  • Locking Feature: Rotary Lock and Backlock
  • Cable End Type: Tapered
  • Housing Material: Liquid Crystal Polymer (LCP), Halogen-Free
  • Material Flammability Rating: UL94 V-0
  • Actuator Material: LCP, Halogen-Free
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Height Above Board: 0.083 inches (2.10mm)
  • Mating Cycle: 20
  • Contact Finish: Gold
  • Contact Finish Thickness: 5.90 microns (0.150 microns)
  • Package: Tape and Reel
  • Standard Package: 100
