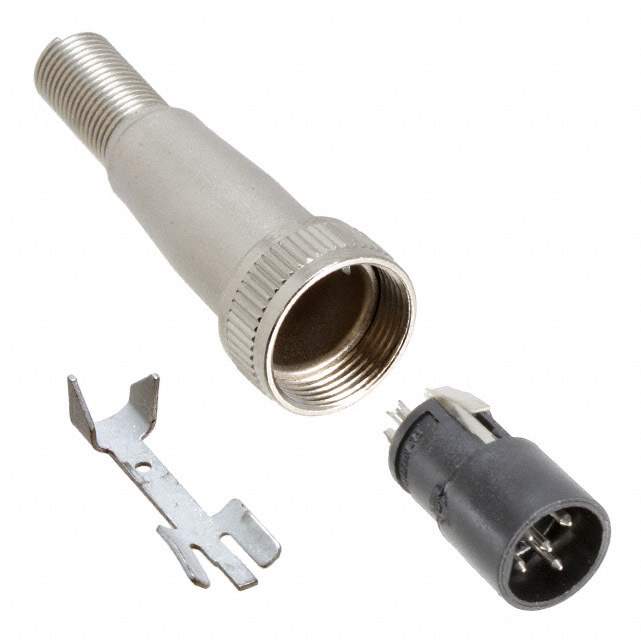

SL405MX Real Image
Same model may have multiple batches, images only for reference.

SL405MX

Part No SL405MX
Manufacturer Switchcraft Inc.
Catalog Circular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Switchcraft Inc.
Series Slim-Line® SL40
Package Bulk
Connector Type Plug, Male Pins
Number of Positions 5
Shell Size - Insert SL-5M
Mounting Type Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Threaded
Orientation 4
Primary Material Metal
Shell Material Copper Alloy
Shell Finish Nickel
Contact Finish - Mating Silver
Color Silver
Material Flammability Rating UL94 V-0
Features Cable Clamp, Coupling Nut, Strain Relief
Shielding Shielded
Current Rating (Amps) 5A
Cable Opening 0.280" (7.10mm)
Contact Material Copper Alloy
Insert Material Thermoplastic, Glass Filled
Applications Audio, Industrial, Marine, Medical
Base Product Number SL405M
Other Names SL405MX,SC2002
Standard Package 100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1294173-SL405MX
Ultra Librarian 3D Model Ultra Librarian SL405MX CAD Model

Description

The Slim-Line® SL40 series circular connector is a high-quality connector designed for use in audio, industrial, marine, and medical applications.

  • Positions: 5-position plug with male pins
  • Termination: solder cup termination
  • Shielded: Yes
  • Flammability Rating: UL94 V-0
  • Features: cable clamp, coupling nut, and strain relief
  • Shell Size: SL-5M
  • Material: copper alloy with a nickel finish
  • Voltage Rating: not specified
  • Ingress Protection Rating: not specified
  • Mounting Type: free hanging
  • Temperature Range: not specified
  • Package Includes: 100 connectors
