Same model may have multiple batches, images only for reference.

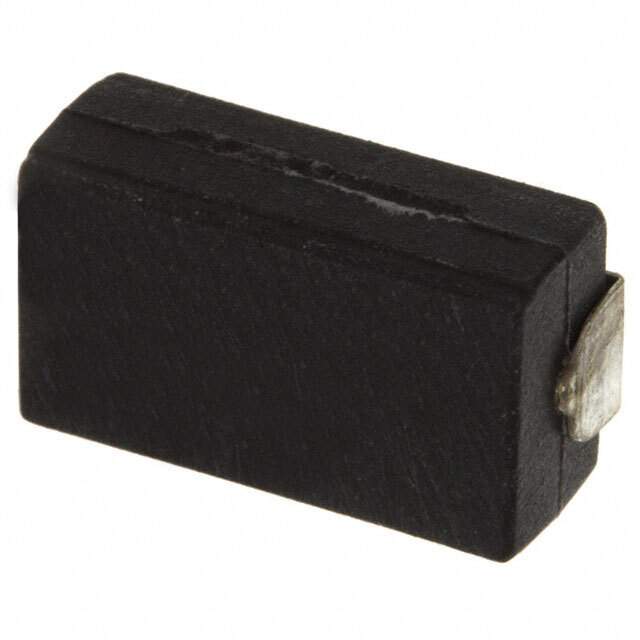

S4-4R02F1 Real Image
Same model may have multiple batches, images only for reference.

S4-4R02F1

Part No S4-4R02F1
Manufacturer Riedon
Catalog Chip Resistor - Surface Mount
Description RES SMD 4.02 OHM 1% 2W 4525 / 4.02 Ohms ±1% 2W Chip Resistor 4525 J-Lead Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety Wirewound
Datasheet
S4-4R02F1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Riedon
Series S
Package Tape & Reel (TR)
Resistance 4.02 Ohms
Tolerance ±1%
Power (Watts) 2W
Composition Wirewound
Features Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 275°C
Package / Case 4525 J-Lead
Dimension 0.449" L x 0.252" W (11.40mm x 6.40mm)
Height - Seated (Max) 0.197" (5.00mm)
Number of Terminations 2
Other Names S-4-4.02FTR,S-4-4.02FTR
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1237173-S4-4R02F1
Ultra Librarian 3D Model Ultra Librarian S4-4R02F1 CAD Model

Description

The part number 1237173-S4-4R02F1 is a chip resistor - surface mount from Riedon.

  • Series: S
  • Packaging: Tape & Reel (TR)
  • Height: 0.197" (5.00mm)
  • Standard Package: 250
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Power: 2W
  • Composition: Wirewound
  • Terminations: 2
  • Resistance: 4.02 Ohms
  • Package/Case: 4525 J-Lead
  • Supplier Device Package: -
  • Operating Temperature: -55°C ~ 275°C
  • Dimension: 0.449" L x 0.252" W (11.40mm x 6.40mm)
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH Affected
  • HTSUS: 8533.21.0080
