Same model may have multiple batches, images only for reference.

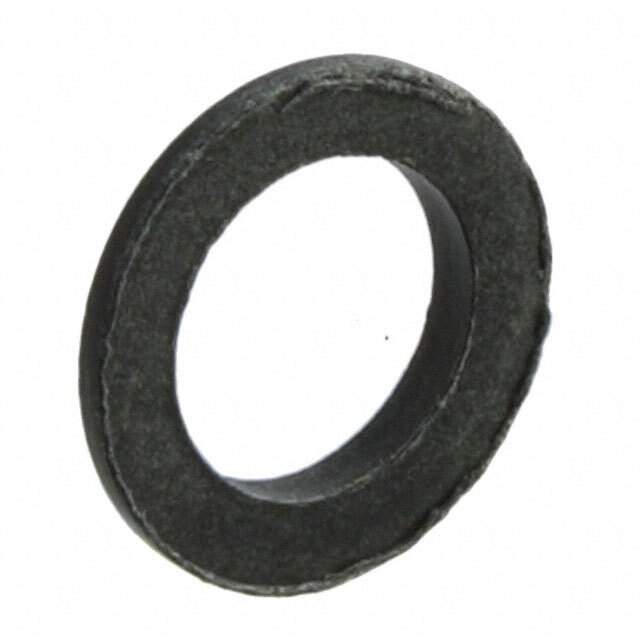

S4263 Real Image
Same model may have multiple batches, images only for reference.

S4263

Part No S4263
Manufacturer Switchcraft Inc.
Catalog Washers - Bushing, Shoulder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Hardware, Fasteners, Accessories>Washers - Bushing, Shoulder
Mfr Switchcraft Inc.
Package Bulk
Diameter - Inside 0.317" (8.05mm)
Diameter - Outside 0.492" (12.50mm)
Diameter - Shoulder 0.370" (9.40mm)
Thickness - Overall 0.037" (0.94mm)
Length - Below Head 0.039" (0.99mm)
Other Names SC1869,S4263
Standard Package 500
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 3926.90.4590
Win Source Part Number 1275025-S4263
Ultra Librarian 3D Model Ultra Librarian S4263 CAD Model

Description

The 1275025-S4263 is a washer-bushing, shoulder series from Switchcraft Inc.

  • Series: Washer-Bushing, Shoulder
  • Package Type: Bulk
  • Standard Package: 500
  • Overall Thickness: 0.037" (0.94mm)
  • Outside Diameter: 0.492" (12.50mm)
  • Inside Diameter: 0.317" (8.05mm)
  • Length Below Head: 0.039" (0.99mm)
  • Diameter Shoulder: 0.370" (9.40mm)
  • Thread/Screw/Hole Size: Not applicable
  • ECCN: EAR99
  • REACH: REACH unaffected
  • HTSUS: 3926.90.4590
  • Availability: in the open market.
